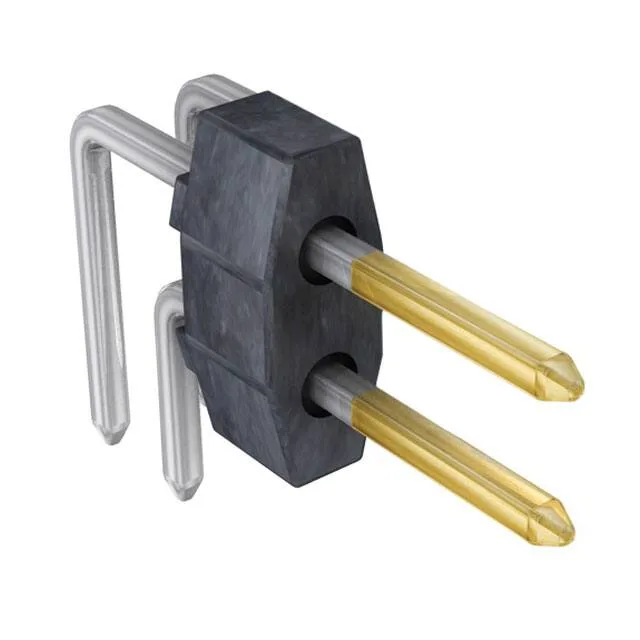

Molex C-Grid III 90122 series, unshrouded breakaway header, 2 circuits, 0.100" (2.54 mm) pitch, right-angle through-hole, gold-plated mating contacts, tin-plated posts, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | C-Grid III 90122 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.242\" (6.14mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Positions | 2 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.266\" (6.75mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 90122-0761: Push-pull fastening, no latch; suitable for low-vibration environments where the connector pair is not subject to continuous shock.
The solder posts are tin-plated at 118.1 µinch (3.00 µm), compatible with lead-free wave solder profiles.
The pitch is 0.100" (2.54 mm) between adjacent pin centres, matching the standard C-Grid III grid.
This header mates with C-Grid III series crimp receptacles (e.g., Molex 90119 or 90123 series housings) using standard 0.100" pitch female terminals. The unshrouded header relies on the receptacle for polarisation and retention.
