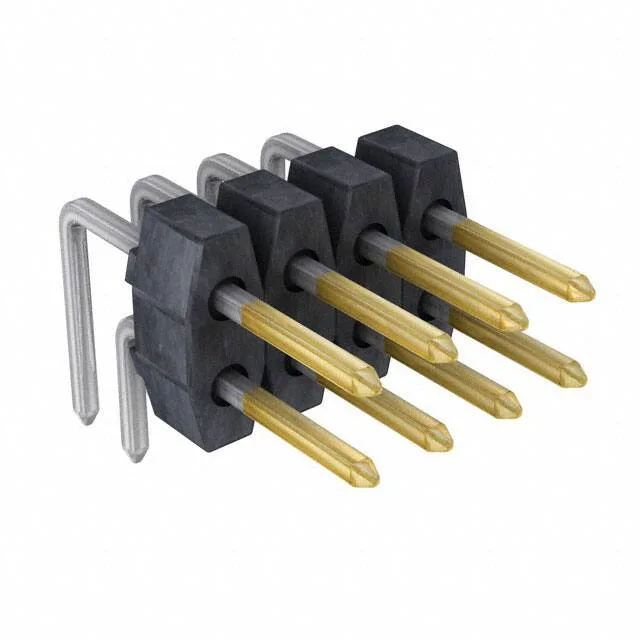

Molex C-Grid III 90122 series, 90122-0762, unshrouded breakaway header, 4 positions, 2 rows, 0.100" (2.54 mm) pitch, through-hole right angle, gold mating contacts, ROHS3 compliant, bulk packaging.
| Parameter | Value |
|---|---|
| Series | C-Grid III 90122 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.242\" (6.14mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.266\" (6.75mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Unshrouded breakaway header — mates with any standard C-Grid III or compatible 0.100" pitch receptacle housing. No keying or polarization beyond the pin layout, so orientation is set by the PCB footprint. Solder termination through the 0.114" (2.90 mm) post length gives a solid through-hole joint; the tin-plated posts (118.1 µinch) solder cleanly with standard lead-free profiles.
The 90122-0762 is an active part sourced through independent distribution.
The mating pitch is 0.100" (2.54 mm), with the same 0.100" row spacing — a standard footprint compatible with many legacy through-hole layouts.
Yes, it is ROHS3 compliant.
Yes, the full product drawing and electrical ratings are available in the Molex C-Grid III 90122 series datasheet. The spec table on this page carries the key parametric values.
