Molex 901481103
MPN901481103
Active

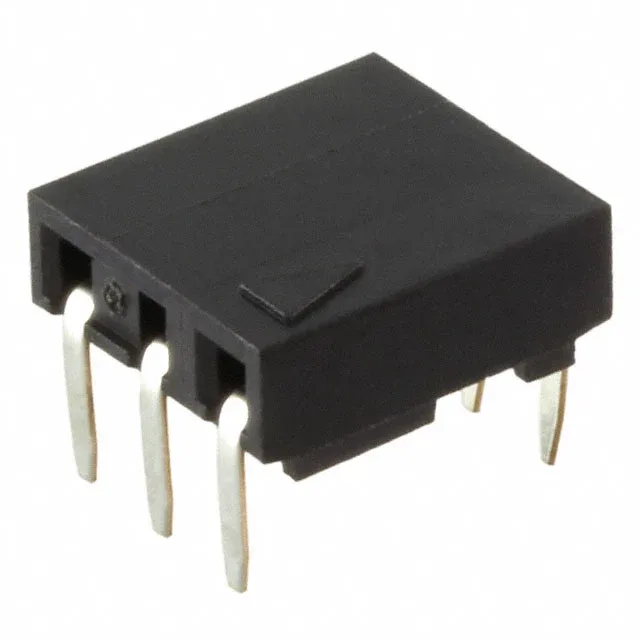

CONN RCPT 3POS 0.1 TIN PCB R/A
$1.2Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesC-Grid 90148
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | C-Grid 90148 |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 350V |
| Current rating | 3A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.130\" (3.30mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 40.0µin (1.02µm) |
| Contact finish thickness - mating | 40.0µin (1.02µm) |
