Molex 907790002
MPN907790002
Active

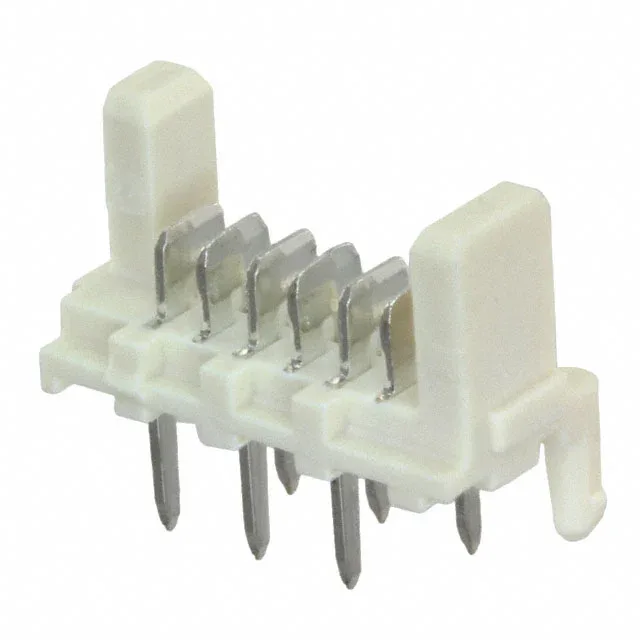

CONN HEADER VERT 6POS 1.27MM
$0.52Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPicoflex PF-50 90779
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Picoflex PF-50 90779 |
| Type | Male Blade |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250V |
| Current rating | 1.2A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.252\" (6.40mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 157.5µin (4.00µm) |
