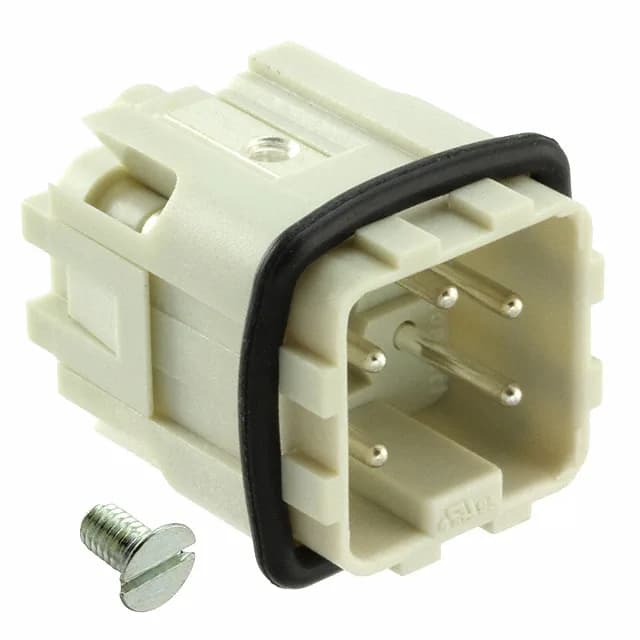

Molex 936010133

GWconnect S-A 936010133 Size 3A Male Insert, 4+Ground, 10A

MPN936010133
Active

GWconnect S-A Size 3A male insert, 4+Ground positions, 10A/250V (UL 600V), silver-plated copper alloy contacts, screw termination, polycarbonate housing, UL94 V-0, -40°C to 125°C, gray, bulk.

$6.16Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesGWconnect S-A
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

936010133 specifications
ParameterValue
SeriesGWconnect S-A
Connector typeInsert
Current rating10A
Operating temperature-40°C ~ 125°C
ColorGray
Contact materialCopper Alloy
Housing materialPolycarbonate (PC)
Material flammability ratingUL94 V-0
Dimensions3A
GenderMale
PackageBulk
Contact finishSilver
Termination styleScrew
Positions4+Ground

Product details

Size 3A Male Insert for Industrial Power Distribution

The Molex GWconnect S-A 936010133 is a Size 3A male insert designed for heavy-duty industrial connector systems. It carries 4+Ground positions — a common configuration for three-phase plus neutral and protective earth in machinery control cabinets and power distribution blocks. The 10A/250V rating (UL 600V listed) gives headroom for 480VAC panel feeds within the 600V UL envelope.

Termination and Contact Design

Screw termination on silver-plated copper alloy contacts — the silver finish keeps contact resistance low under moderate mating cycles typical of fixed industrial installations.

Frequently asked questions

What is the Size 3A designation for the 936010133?

Size 3A is the mechanical envelope standard for the GWconnect S-A series — it defines the panel cutout dimensions and the mating hood/housing interface. This insert fits the corresponding Size 3A hood and receptacle housing.

What compliance documentation is available for 936010133?

The 936010133 is ROHS3 Compliant and carries a UL94 V-0 flammability rating on the polycarbonate housing. The UL 600V listing is noted in the description. Full compliance documentation is provided with the order.

Where can I buy 936010133 and how is it quoted?

The 936010133 is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding claim is made here. Submit an RFQ for your BOM quantity.
