What this insert is and where it sits in the GWconnect S-E series

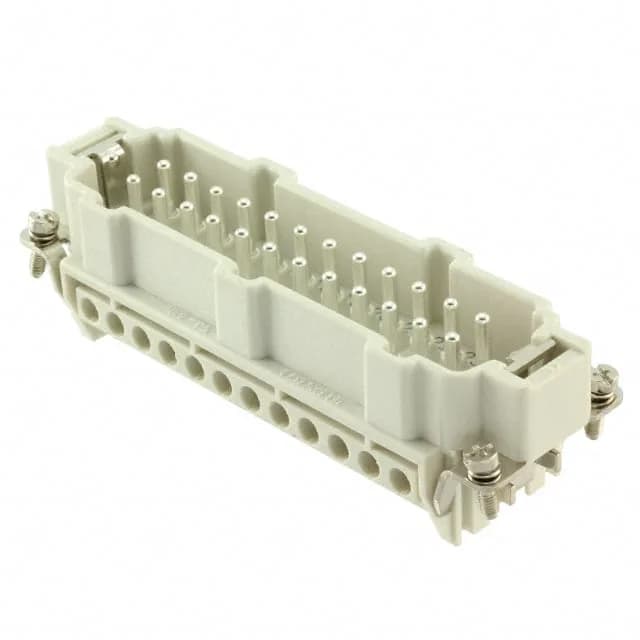

The Molex GWconnect S-E 936010307 is a 24-position plus PE male insert, Size 24B, in the GWconnect S-E industrial insert connector series. It mates with the matching GWconnect S-E female insert of the same size and position count — the male and female halves form the complete in-panel bus connection when mounted into compatible Size 24B housings. Rated 16 A per contact at 500 V, the silver-plated copper alloy contacts carry higher current density than tin-plated equivalents and resist the surface oxidation common in industrial enclosure environments. Screw termination accepts a defined wire gauge range per the product drawing — conductors land without a crimp tool, which matters for field panel builds where the harness shop is not at the machine.
Housing, flammability, and temperature envelope
The polycarbonate housing carries a UL94 V-0 flammability rating, meeting the fire-retardance requirement for enclosed industrial panels. The -40°C to 125°C operating range covers the thermal cycling envelope of unheated factory floors and outdoor cabinets — the insert itself sees no current derating across that span at the 16 A rating, but check the derating curve in the product drawing if the panel ambient approaches the upper limit.
Sizing and sourcing
The 24+PE contact arrangement requires compatible Size 24B housings — verify the enclosure panel cutout matches this form factor before selection.
