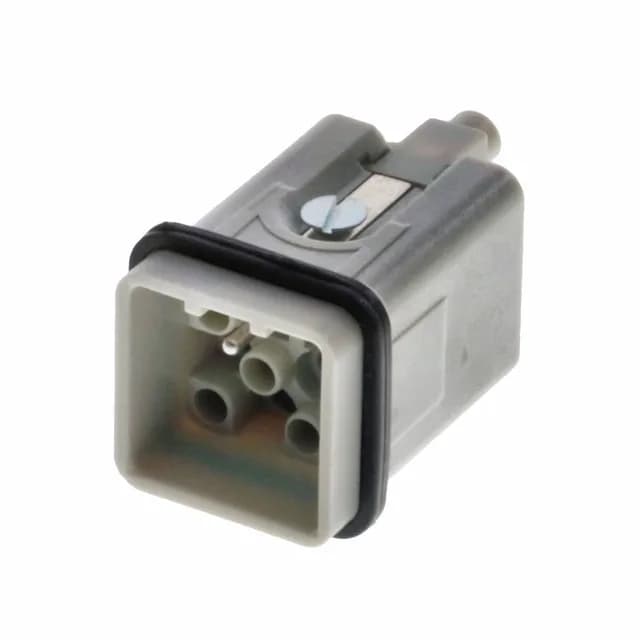

The 936010448 is a Size 3A male insert from the GWconnect S-Q12/0 series, designed for heavy-duty industrial connector systems. It provides 12+Ground positions rated at 10A and 400V, housed in a gray polycarbonate body with a UL94 V-0 flammability rating. This is an insert without contacts — the crimp terminals are ordered separately, so the BOM needs to account for the matching contacts and the backshell or housing that completes the assembly. The 12+Ground layout follows the standard Size 3A pin pattern, compatible with the corresponding GWconnect hoods and housings.
The 10A per-contact rating at 400V gives this insert solid power-handling for signal and moderate-power circuits within a single connector. The 12+Ground arrangement means 12 signal or power circuits plus a dedicated ground pin — the ground should be wired with a conductor sized to handle fault current per the system's safety requirements.
Termination and Assembly
Crimp termination means the installer attaches the contacts to the wires with a crimp tool before inserting them into the insulator. This gives a repeatable, gas-tight connection when the correct contact and tool are used. The insert accepts the standard GWconnect Size 3A crimp contacts — confirm the wire gauge range of the selected contact against the circuit load. Build-to-print needs both halves: the male insert mates with the corresponding female insert in the same Size 3A format, and the assembly fits into a GWconnect hood or housing with the matching profile.
