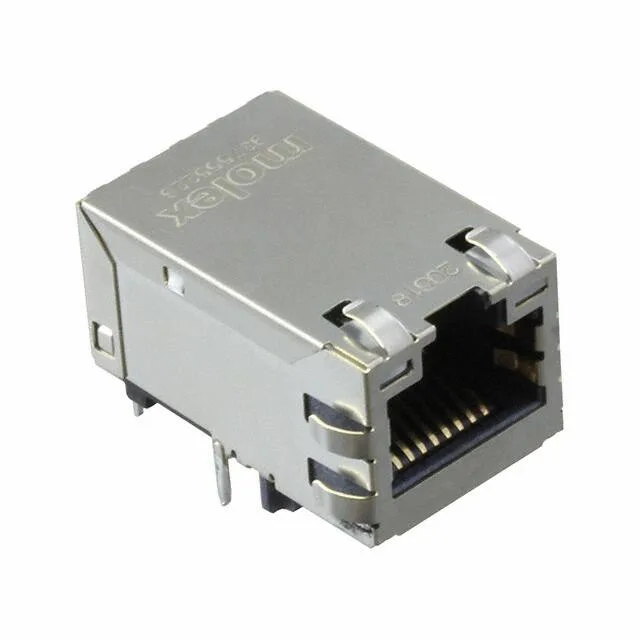

Molex 937555226
MPN937555226
Active
CONN JACK 1PORT 100 BASE-T PCB
$8.34Ref. price · indicative, final on quote
SeriesMXMag 93755
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MXMag 93755 |
| Mounting | Through Hole |
| Connector type | RJ45 |
| Operating temperature | -40°C ~ 85°C |
| LED color | Green - Yellow |
| Shield material | Brass, Nickel Coated |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP) |
| Height above board | 0.555\" (14.10mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide |
| Shielding | Shielded, EMI Finger |
All specifications
| Parameter | Value |
|---|---|
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Applications | 10/100 Base-T, AutoMDIX |
| Tab direction | Up |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 2.00µin (0.051µm) |
| Number of cores per jack | 4 |
