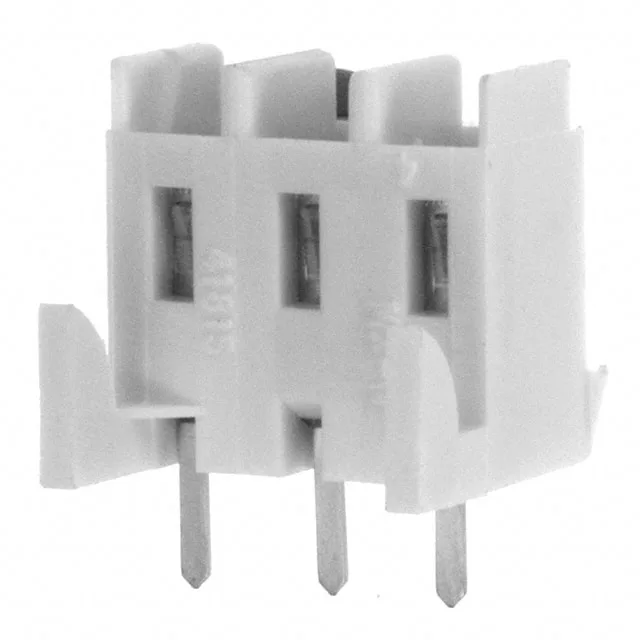

Molex 9483034
MPN9483034
Active
CONN RCPT 3POS 0.156 GOLD PCB
$0.79Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesKK396, 41815
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KK396, 41815 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle, Bottom Entry |
| Fastening type | Locking Ramp |
| Voltage rating | 600V |
| Current rating | 4A |
| Operating temperature | -40°C ~ 80°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.449\" (11.40mm) |
| Insulation material | Polyester |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Features | Board Hooks |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
