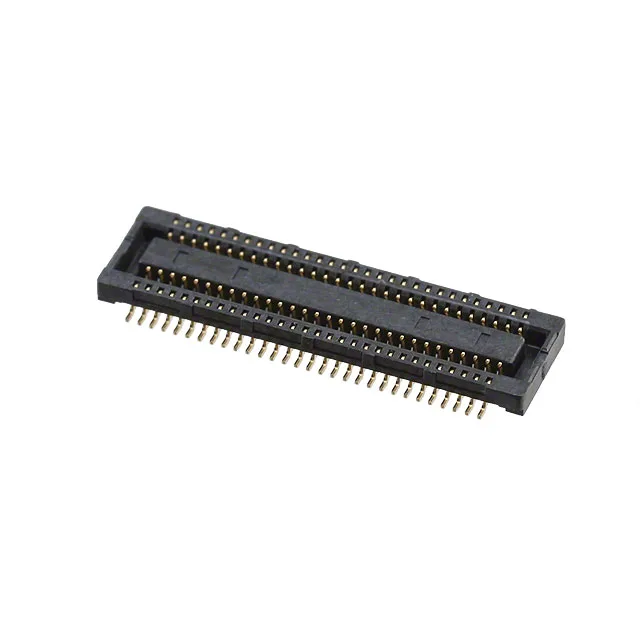

0547220304
Molex
Tape & Reel (TR) Cut Tape (CT)300.020\" (0.50mm)
Ref. price$2.1100
Lead time on requestGet quote
Molex 0547 Series
2 variants · Molex
About the Molex 0547 Series
The Molex 0547 Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Receptacle, Center Strip Contacts, contact finish of Gold and contact finish thickness of 10.0µin (0.25µm). Variants differ by package and positions, so you can match the exact package your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Molex 0547 Series variants and discontinued ones from a single page.
Select a variant by
- Package
- Bulk · Tape & Reel (TR) Cut Tape (CT)
- Positions
- 30 · 60
Shared specifications
- Connector type
- Receptacle, Center Strip Contacts
- Contact finish
- Gold
- Contact finish thickness
- 10.0µin (0.25µm)
- Features
- -
- Height above board
- 0.045\" (1.14mm)
- Mated stacking heights
- 1.5mm
- Mounting
- Surface Mount
- Pitch
- 0.020\" (0.50mm)
- Rows
- 2
Variant comparison
| Parameter | 0547220304 | 0547220607 |
|---|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) | Bulk |
| Positions | 30 | 60 |
Request a quote on any Molex 0547 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
