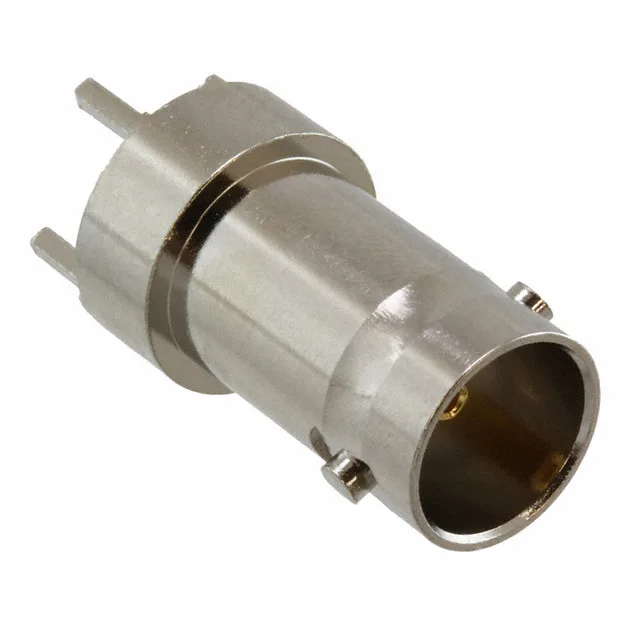

0731000067
Molex
Panel Mount, Through Hole, Right Angle73100Tray
Ref. price$8.1300
Lead time on requestGet quote
Molex 0731 Rf Assemblies Series
2 variants · Molex
About the Molex 0731 Rf Assemblies Series
The Molex 0731 Rf Assemblies Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common body finish of Nickel, body material of Zinc Alloy and cable group of -. Variants differ by dielectric material, features and housing color, so you can match the exact dielectric material your application requires using the selection guide below. All listed Molex 0731 Rf Assemblies Series part numbers are active and orderable.
Select a variant by
- Dielectric material
- Polyethylene (PE) · Polypropylene (PP)
- Features
- - · Isolated
- Housing color
- Black, Silver · Silver
- Includes
- - · 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Mounting
- Panel Mount, Through Hole, Right Angle · Through Hole
- Mounting feature
- - · Bulkhead - Front Side Nut
- Package
- Bulk · Tray
Shared specifications
- Body finish
- Nickel
- Body material
- Zinc Alloy
- Cable group
- -
- Center contact material
- Phosphor Bronze
- Center contact plating
- Gold
- Connector type
- Jack, Female Socket
- Contact termination
- Solder
- Fastening type
- Bayonet Lock
- Impedance
- 75 Ohms
- Insertion loss
- -
- IP rating
- -
- Mating cycles
- 500
Variant comparison
| Parameter | 0731000067 | 0731711900 |
|---|---|---|
| Dielectric material | Polypropylene (PP) | Polyethylene (PE) |
| Features | Isolated | - |
| Housing color | Black, Silver | Silver |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | - |
| Mounting | Panel Mount, Through Hole, Right Angle | Through Hole |
| Mounting feature | Bulkhead - Front Side Nut | - |
| Package | Tray | Bulk |
Request a quote on any Molex 0731 Rf Assemblies Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
