5015942211
Molex
SlimStack 501594220.016\" (0.40mm)
Ref. price$1.2900
Lead time on requestGet quote
Molex 5015 Board To Board Series
2 variants · Molex
About the Molex 5015 Board To Board Series
The Molex 5015 Board To Board Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Plug, Outer Shroud Contacts, contact finish of Gold and features of Solder Retention. Variants differ by contact finish thickness, height above board and mated stacking heights, so you can match the exact contact finish thickness your application requires using the selection guide below. Listed Molex 5015 Board To Board Series part numbers are obsolete or end-of-life — we specialise in sourcing discontinued and hard-to-find Molex 5015 Board To Board Series components.
Select a variant by
- Contact finish thickness
- 4.00µin (0.100µm) · 8.00µin (0.203µm)
- Height above board
- 0.028\" (0.71mm) · 0.041\" (1.05mm)
- Mated stacking heights
- 0.9mm · 1.3mm
- Positions
- 22 · 34
Shared specifications
- Connector type
- Plug, Outer Shroud Contacts
- Contact finish
- Gold
- Features
- Solder Retention
- Mounting
- Surface Mount
- Package
- Tape & Reel (TR) Cut Tape (CT)
- Pitch
- 0.016\" (0.40mm)
- Rows
- 2
Variant comparison

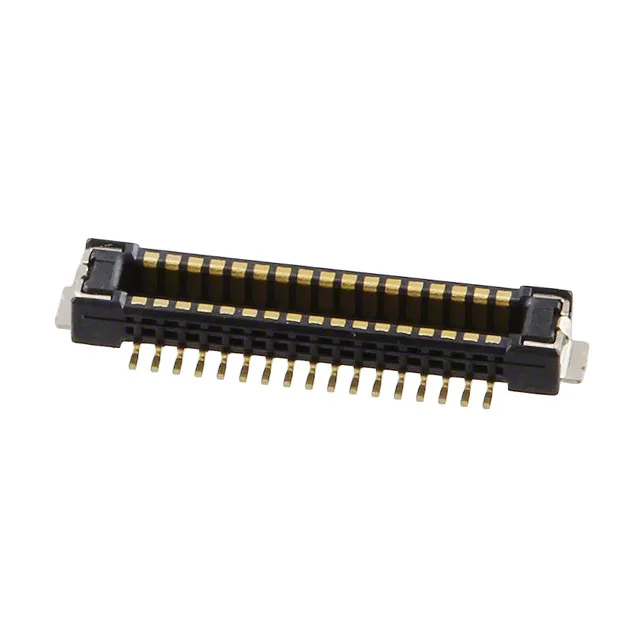

| Parameter | 5015313410 | 5015942211 |
|---|---|---|
| Contact finish thickness | 8.00µin (0.203µm) | 4.00µin (0.100µm) |
| Height above board | 0.041\" (1.05mm) | 0.028\" (0.71mm) |
| Mated stacking heights | 1.3mm | 0.9mm |
| Positions | 34 | 22 |
Request a quote on any Molex 5015 Board To Board Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
