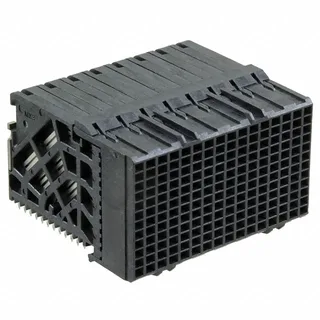

761601020
Molex
120Black0.053\" (1.35mm)
Ref. price$18.27
Lead time on requestGet quote ›
Molex 7616 Series
8 variants · Molex
About the Molex 7616 Series
The Molex 7616 Series series groups 8 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Black, connector type of Receptacle, Female Sockets and contact finish of Gold. Variants differ by number of columns, positions and contact layout, typical, so you can match the exact number of columns your application requires using the selection guide below. All listed Molex 7616 Series part numbers are active and orderable.
Select a variant by
- Number of columns
- 8 · 10 · 16
- Positions
- 96 · 120 · 192
- Contact layout, typical
- 32 Differential Pairs · 40 Differential Pairs · 64 Differential Pairs
Shared specifications
- Color
- Black
- Connector type
- Receptacle, Female Sockets
- Contact finish
- Gold
- Contact finish thickness
- 30.0µin (0.76µm)
- Features
- Board Guide
- Material flammability rating
- UL94 V-0
- Mounting type
- Board Edge, Through Hole, Right Angle
- Operating temperature
- -55°C ~ 85°C
- Package
- Tray
- Pitch
- 0.053\" (1.35mm)
- Rows
- 12
- Termination
- Press-Fit
Variant comparison
| Parameter | 761601020 | 761601026 | 761601038 | 761603008 | 761603026 | 761603038 |
|---|---|---|---|---|---|---|
| Number of columns | 10 | 16 | 8 | 8 | 16 | 8 |
| Positions | 120 | 192 | 96 | 96 | 192 | 96 |
| Contact layout, typical | — | 64 Differential Pairs | 32 Differential Pairs | 32 Differential Pairs | 64 Differential Pairs | 32 Differential Pairs |
Request a quote on any Molex 7616 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Molex 7616 Series variants differ?
- Molex 7616 Series part numbers differ by number of columns, positions and contact layout, typical. Use the selection guide above to pick by number of columns.
- How many Molex 7616 Series part numbers are listed?
- 8 Molex 7616 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Molex 7616 Series?
- Request a quote (RFQ) for any Molex 7616 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
