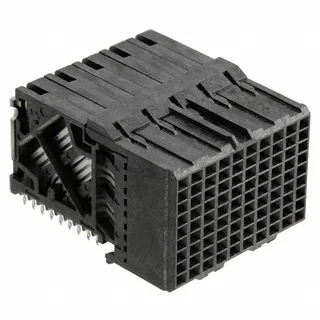

761701020
Molex
90BlackImpact 76170
Ref. price$15.75
Lead time on requestGet quote ›
Molex 7617 Series
10 variants · Molex
About the Molex 7617 Series
The Molex 7617 Series series groups 10 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Black, connector type of Receptacle, Female Sockets and contact finish of Gold. Variants differ by contact layout, typical, number of columns and positions, so you can match the exact contact layout, typical your application requires using the selection guide below. All listed Molex 7617 Series part numbers are active and orderable.
Select a variant by
- Contact layout, typical
- 18 Differential Pairs · 24 Differential Pairs · 30 Differential Pairs · 48 Differential Pairs
- Number of columns
- 6 · 8 · 10 · 16
- Positions
- 54 · 72 · 90 · 144
Shared specifications
- Color
- Black
- Connector type
- Receptacle, Female Sockets
- Contact finish
- Gold
- Contact finish thickness
- 30.0µin (0.76µm)
- Material flammability rating
- UL94 V-0
- Mounting type
- Board Edge, Through Hole, Right Angle
- Operating temperature
- -55°C ~ 85°C
- Package
- Tray
- Rows
- 9
- Termination
- Press-Fit
- Voltage rating
- 30V
Variant comparison
| Parameter | 761701020 | 761701026 | 761701038 | 761703020 | 761703036 | 761703038 |
|---|---|---|---|---|---|---|
| Contact layout, typical | 30 Differential Pairs | 48 Differential Pairs | 24 Differential Pairs | 30 Differential Pairs | 18 Differential Pairs | 24 Differential Pairs |
| Number of columns | 10 | 16 | 8 | 10 | 6 | 8 |
| Positions | 90 | 144 | 72 | 90 | 54 | 72 |
Request a quote on any Molex 7617 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Molex 7617 Series variants differ?
- Molex 7617 Series part numbers differ by contact layout, typical, number of columns and positions. Use the selection guide above to pick by contact layout, typical.
- How many Molex 7617 Series part numbers are listed?
- 10 Molex 7617 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Molex 7617 Series?
- Request a quote (RFQ) for any Molex 7617 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
