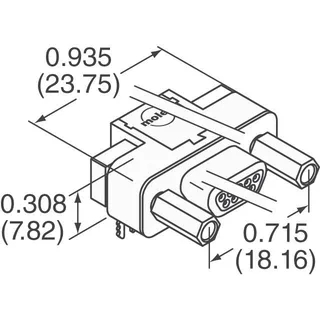

836119006
Molex
9Commercial Micro-D Series 83611Board Lock, Shielded
Ref. price$16.39
Lead time on requestGet quote ›
Molex 8361 Series
11 variants · Molex
About the Molex 8361 Series
The Molex 8361 Series series groups 11 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Plug, Male Pins, contact finish of Gold and contact finish thickness of 15.0µin (0.38µm). Variants differ by features, flange feature and mounting type, so you can match the exact features your application requires using the selection guide below. All listed Molex 8361 Series part numbers are active and orderable.
Select a variant by
- Features
- Board Lock, Shielded · Shielded
- Flange feature
- Housing/Shell (2-56) · Mating Side, Female Screwlock (2-56)
- Mounting type
- Panel Mount, Through Hole, Right Angle · Through Hole
- Operating temperature
- -55°C ~ 125°C · -40°C ~ 125°C
- Package
- Bulk · Tube
- Positions
- 9 · 9, 9 · 15 · 25 · 25, 25
- Rows
- 2 · 2, 2
Shared specifications
- Connector type
- Plug, Male Pins
- Contact finish
- Gold
- Contact finish thickness
- 15.0µin (0.38µm)
- Contact material
- Copper Alloy
- Current rating
- 1A
- Dielectric material
- Liquid Crystal Polymer (LCP)
- Gender
- Signal
- Material flammability rating
- UL94 V-0
- Shell material, finish
- Steel, Nickel Plated
- Termination
- Solder
Variant comparison
| Parameter | 836119006 | 836119016 | 836119023 | 836129020 | 836129022 | 836129024 |
|---|---|---|---|---|---|---|
| Features | Board Lock, Shielded | Board Lock, Shielded | Shielded | Board Lock, Shielded | Board Lock, Shielded | Board Lock, Shielded |
| Flange feature | Mating Side, Female Screwlock (2-56) | Housing/Shell (2-56) | Mating Side, Female Screwlock (2-56) | Mating Side, Female Screwlock (2-56) | Housing/Shell (2-56) | Mating Side, Female Screwlock (2-56) |
| Mounting type | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Through Hole | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Through Hole |
| Operating temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -55°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Package | Tube | Tube | Bulk | Tube | Tube | Tube |
| Positions | 9 | 9 | 9 | 15 | 15 | 15 |
| Rows | 2 | 2 | 2 | 2 | 2 | 2 |
Request a quote on any Molex 8361 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Molex 8361 Series variants differ?
- Molex 8361 Series part numbers differ by features, flange feature, mounting type and operating temperature. Use the selection guide above to pick by features.
- How many Molex 8361 Series part numbers are listed?
- 11 Molex 8361 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Molex 8361 Series?
- Request a quote (RFQ) for any Molex 8361 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
