172-009-102R011
NorComp Inc.
9BeigeGrounding Indents
Ref. price$4.87
Lead time on requestGet quote ›
NorComp Inc. 1720 Series
13 variants · NorComp Inc.
About the NorComp Inc. 1720 Series
The NorComp Inc. 1720 Series series groups 13 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish of Gold, contact finish thickness of Flash and current rating of 5A. Variants differ by connector type, dielectric material and flange feature, so you can match the exact connector type your application requires using the selection guide below. All listed NorComp Inc. 1720 Series part numbers are active and orderable.
Select a variant by
- Connector type
- Plug, Male Pins · Receptacle, Female Sockets
- Dielectric material
- Polyamide (PA6T), Nylon 6T · Polybutylene Terephthalate (PBT) · Polybutylene Terephthalate (PBT), Glass Filled
- Flange feature
- Board Side (4-40) · Board Side (4-40); Mating Side, Female Screwlock (4-40) · Cable Side (4-40) · Housing/Shell (Unthreaded) · Mating Side (4-40)
- Mounting type
- Panel Mount · Panel Mount, Through Hole
- Operating temperature
- -50°C ~ 100°C · -50°C ~ 125°C
- Positions
- 9 · 15 · 25
- Shell material, finish
- Steel, Nickel Plated · Steel, Tin Plated
- Shell size, connector layout
- 1 (DE, E) · 2 (DA, A) · 3 (DB, B)
Shared specifications
- Contact finish
- Gold
- Contact finish thickness
- Flash
- Current rating
- 5A
- Gender
- Signal
- Material flammability rating
- UL94 V-0
- Package
- Tray
- Rows
- 2
Variant comparison
| Parameter | 172-009-102R011 | 172-009-113R001 | 172-009-183L001 | 172-009-183L031 | 172-009-203R001 | 172-009-283L011 |
|---|---|---|---|---|---|---|

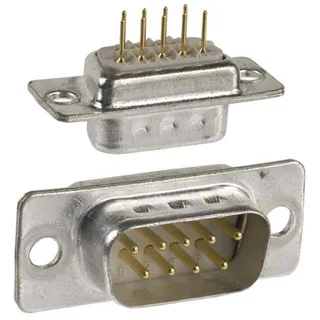

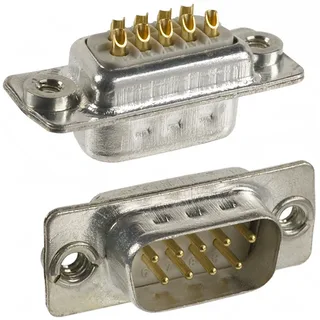

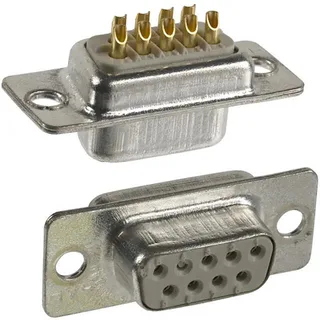

| Connector type | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled | Polyamide (PA6T), Nylon 6T | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polyamide (PA6T), Nylon 6T | Polybutylene Terephthalate (PBT) |
| Flange feature | Cable Side (4-40) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Mating Side (4-40) | Housing/Shell (Unthreaded) | Board Side (4-40) |
| Mounting type | Panel Mount | Panel Mount, Through Hole | Panel Mount, Through Hole | Panel Mount, Through Hole | Panel Mount | Panel Mount, Through Hole |
| Operating temperature | -50°C ~ 100°C | -50°C ~ 100°C | -50°C ~ 125°C | -50°C ~ 125°C | -50°C ~ 100°C | -50°C ~ 125°C |
| Positions | 9 | 9 | 9 | 9 | 9 | 9 |
| Shell material, finish | Steel, Tin Plated | Steel, Nickel Plated | Steel, Nickel Plated | Steel, Nickel Plated | Steel, Nickel Plated | Steel, Nickel Plated |
| Shell size, connector layout | 1 (DE, E) | 1 (DE, E) | 1 (DE, E) | 1 (DE, E) | 1 (DE, E) | 1 (DE, E) |
Request a quote on any NorComp Inc. 1720 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the NorComp Inc. 1720 Series variants differ?
- NorComp Inc. 1720 Series part numbers differ by connector type, dielectric material, flange feature and mounting type. Use the selection guide above to pick by connector type.
- How many NorComp Inc. 1720 Series part numbers are listed?
- 13 NorComp Inc. 1720 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for NorComp Inc. 1720 Series?
- Request a quote (RFQ) for any NorComp Inc. 1720 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
