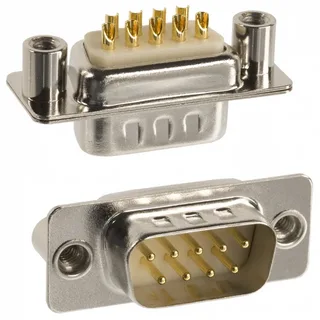

172-E09-102R001
NorComp Inc.
9Grounding Indents2
Ref. price$2.83
Lead time on requestGet quote ›
NorComp Inc. 172E Series
47 variants · NorComp Inc.
About the NorComp Inc. 172E Series
The NorComp Inc. 172E Series series groups 47 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of White, contact finish of Gold and contact finish thickness of Flash. Variants differ by connector type, dielectric material and flange feature, so you can match the exact connector type your application requires using the selection guide below. All listed NorComp Inc. 172E Series part numbers are active and orderable.
Select a variant by
- Connector type
- Plug, Male Pins · Receptacle, Female Sockets
- Dielectric material
- Polyamide (PA6T), Nylon 6T · Polybutylene Terephthalate (PBT)
- Flange feature
- Board Side (4-40) · Board Side (4-40); Mating Side, Female Screwlock (4-40) · Cable Side (4-40) · Cable Side (4-40); Mating Side, Female Screwlock (4-40) · Housing/Shell (Unthreaded) · Mating Side (4-40)
- Mounting type
- Panel Mount · Panel Mount, Through Hole
- Shell material, finish
- Steel, Nickel Plated · Steel, Tin Plated
- Termination
- Solder · Solder Cup
- Features
- Board Lock · Board Lock, Grounding Indents · Grounding Indents
Shared specifications
- Color
- White
- Contact finish
- Gold
- Contact finish thickness
- Flash
- Contact form
- Machined
- Contact material
- Brass
- Current rating
- 5A
- Gender
- Signal
- Material flammability rating
- UL94 V-0
- Operating temperature
- -50°C ~ 100°C
- Package
- Tray
- Positions
- 9
- Rows
- 2
Variant comparison

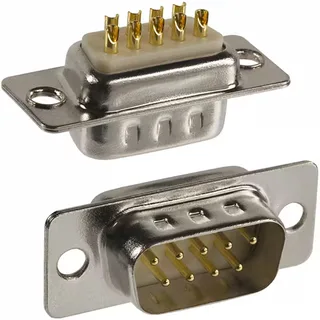

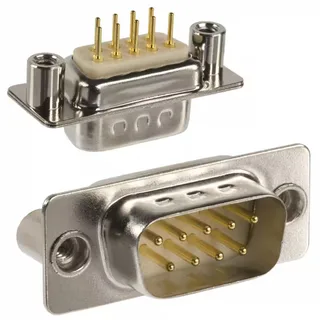

| Parameter | 172-E09-102R001 | 172-E09-103R001 | 172-E09-103R021 | 172-E09-113R001 | 172-E09-113R021 | 172-E09-113R031 |
|---|---|---|---|---|---|---|
| Connector type | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins |
| Dielectric material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polyamide (PA6T), Nylon 6T | Polyamide (PA6T), Nylon 6T | Polyamide (PA6T), Nylon 6T |
| Flange feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Cable Side (4-40) | Housing/Shell (Unthreaded) | Board Side (4-40) | Mating Side (4-40) |
| Mounting type | Panel Mount | Panel Mount | Panel Mount | Panel Mount, Through Hole | Panel Mount, Through Hole | Panel Mount, Through Hole |
| Shell material, finish | Steel, Tin Plated | Steel, Nickel Plated | Steel, Nickel Plated | Steel, Nickel Plated | Steel, Nickel Plated | Steel, Nickel Plated |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder | Solder | Solder |
| Features | Grounding Indents | Grounding Indents | Grounding Indents | Grounding Indents | Grounding Indents | Grounding Indents |
Request a quote on any NorComp Inc. 172E Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the NorComp Inc. 172E Series variants differ?
- NorComp Inc. 172E Series part numbers differ by connector type, dielectric material, flange feature and mounting type. Use the selection guide above to pick by connector type.
- How many NorComp Inc. 172E Series part numbers are listed?
- 47 NorComp Inc. 172E Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for NorComp Inc. 172E Series?
- Request a quote (RFQ) for any NorComp Inc. 172E Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
