174-E09-113R001
NorComp Inc.
9Grounding Indents2
Ref. price$4.85
Lead time on requestGet quote ›

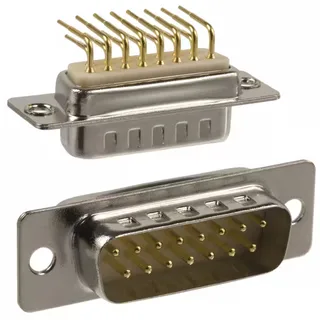

NorComp Inc. 174E Series
10 variants · NorComp Inc.
About the NorComp Inc. 174E Series
The NorComp Inc. 174E Series series groups 10 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common backset spacing of 0.370\" (9.40mm), color of White and contact finish of Gold. Variants differ by connector type, flange feature and positions, so you can match the exact connector type your application requires using the selection guide below. All listed NorComp Inc. 174E Series part numbers are active and orderable.
Select a variant by
- Connector type
- Plug, Male Pins · Receptacle, Female Sockets
- Flange feature
- Housing/Shell (Unthreaded) · Mating Side, Female Screwlock (4-40)
- Positions
- 9 · 15 · 25 · 37 · 50
- Rows
- 2 · 3
- Shell size, connector layout
- 1 (DE, E) · 2 (DA, A) · 3 (DB, B) · 4 (DC, C) · 5 (DD, D)
- Features
- Grounding Indents · Mounting Brackets
Shared specifications
- Backset spacing
- 0.370\" (9.40mm)
- Color
- White
- Contact finish
- Gold
- Contact finish thickness
- Flash
- Contact form
- Machined
- Current rating
- 5A
- Dielectric material
- Polyamide (PA6T), Nylon 6T
- Gender
- Signal
- Material flammability rating
- UL94 V-0
- Mounting type
- Panel Mount, Through Hole, Right Angle
- Operating temperature
- -50°C ~ 100°C
- Package
- Tray
Variant comparison
| Parameter | 174-E09-113R001 | 174-E09-213R001 | 174-E09-213R141 | 174-E15-113R001 | 174-E25-113R001 | 174-E25-213R001 |
|---|---|---|---|---|---|---|
| Connector type | Plug, Male Pins | Receptacle, Female Sockets | Receptacle, Female Sockets | Plug, Male Pins | Plug, Male Pins | Receptacle, Female Sockets |
| Flange feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Mating Side, Female Screwlock (4-40) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) |
| Positions | 9 | 9 | 9 | 15 | 25 | 25 |
| Rows | 2 | 2 | 2 | 2 | 2 | 2 |
| Shell size, connector layout | 1 (DE, E) | 1 (DE, E) | 1 (DE, E) | 2 (DA, A) | 3 (DB, B) | 3 (DB, B) |
| Features | Grounding Indents | — | Mounting Brackets | Grounding Indents | Grounding Indents | — |
Request a quote on any NorComp Inc. 174E Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the NorComp Inc. 174E Series variants differ?
- NorComp Inc. 174E Series part numbers differ by connector type, flange feature, positions and rows. Use the selection guide above to pick by connector type.
- How many NorComp Inc. 174E Series part numbers are listed?
- 10 NorComp Inc. 174E Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for NorComp Inc. 174E Series?
- Request a quote (RFQ) for any NorComp Inc. 174E Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
