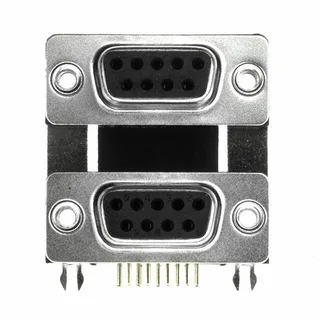

178-009-413R491
NorComp Inc.
9, 9Board Lock, Grounding Indents, ShieldedTray
Ref. price$8.5
Lead time on requestGet quote ›
NorComp Inc. 1780 Series
21 variants · NorComp Inc.
About the NorComp Inc. 1780 Series
The NorComp Inc. 1780 Series series groups 21 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common backset spacing of 0.318\" (8.08mm), color of Black and contact finish of Gold. Variants differ by connector type, features and flange feature, so you can match the exact connector type your application requires using the selection guide below. All listed NorComp Inc. 1780 Series part numbers are active and orderable.
Select a variant by
- Connector type
- Plug, Male Pins · Plug, Male Pins; Receptacle, Female Sockets · Receptacle, Female Sockets
- Features
- Board Lock, Grounding Indents, Shielded · Board Lock, Shielded
- Flange feature
- Housing/Shell (4-40) · Mating Side, Female Screwlock (4-40)
- Positions
- 9, 9 · 15, 15
- Shell size, connector layout
- 1 (DE, E); 1 (DE, E) · 2 (DA, A); 2 (DA, A)
Shared specifications
- Backset spacing
- 0.318\" (8.08mm)
- Color
- Black
- Contact finish
- Gold
- Contact finish thickness
- Flash
- Contact form
- Stamped
- Current rating
- 5A
- Dielectric material
- Polyamide (PA9T), Nylon 9T
- Gender
- Signal
- Material flammability rating
- UL94 V-0
- Mounting type
- Panel Mount, Through Hole, Right Angle
- Operating temperature
- -55°C ~ 105°C
- Package
- Tray
Variant comparison
| Parameter | 178-009-413R491 | 178-009-413R571 | 178-009-513R491 | 178-009-513R571 | 178-009-513R691 | 178-009-613R491 |
|---|---|---|---|---|---|---|
| Connector type | Plug, Male Pins; Receptacle, Female Sockets | Plug, Male Pins; Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Plug, Male Pins |
| Features | Board Lock, Grounding Indents, Shielded | Board Lock, Grounding Indents, Shielded | Board Lock, Shielded | Board Lock, Shielded | Board Lock, Shielded | Board Lock, Grounding Indents, Shielded |
| Flange feature | Housing/Shell (4-40) | Mating Side, Female Screwlock (4-40) | Housing/Shell (4-40) | Mating Side, Female Screwlock (4-40) | Housing/Shell (4-40) | Housing/Shell (4-40) |
| Positions | 9, 9 | 9, 9 | 9, 9 | 9, 9 | 9, 9 | 9, 9 |
| Shell size, connector layout | 1 (DE, E); 1 (DE, E) | 1 (DE, E); 1 (DE, E) | 1 (DE, E); 1 (DE, E) | 1 (DE, E); 1 (DE, E) | 1 (DE, E); 1 (DE, E) | 1 (DE, E); 1 (DE, E) |
Request a quote on any NorComp Inc. 1780 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the NorComp Inc. 1780 Series variants differ?
- NorComp Inc. 1780 Series part numbers differ by connector type, features, flange feature and positions. Use the selection guide above to pick by connector type.
- How many NorComp Inc. 1780 Series part numbers are listed?
- 21 NorComp Inc. 1780 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for NorComp Inc. 1780 Series?
- Request a quote (RFQ) for any NorComp Inc. 1780 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
