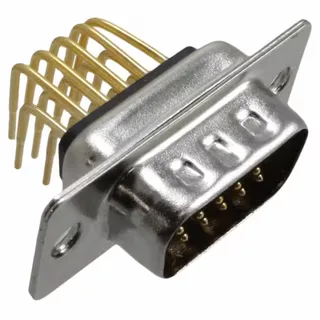

781-M15-113R001
NorComp Inc.
15Grounding IndentsBlack
Ref. price$11.5
Lead time on requestGet quote ›
NorComp Inc. 781M Series
4 variants · NorComp Inc.
About the NorComp Inc. 781M Series
The NorComp Inc. 781M Series series groups 4 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common backset spacing of 0.350\" (8.89mm), color of Black and connector type of Plug, Male Pins. Variants differ by features, flange feature and positions, so you can match the exact features your application requires using the selection guide below. All listed NorComp Inc. 781M Series part numbers are active and orderable.
Select a variant by
- Features
- Board Lock, Grounding Indents · Grounding Indents
- Flange feature
- Housing/Shell (4-40) · Housing/Shell (Unthreaded)
- Positions
- 15 · 26 · 44
- Shell size, connector layout
- 1 (DE, E) High Density · 2 (DA, A) High Density · 3 (DB, B) High Density
Shared specifications
- Backset spacing
- 0.350\" (8.89mm)
- Color
- Black
- Connector type
- Plug, Male Pins
- Contact finish
- Gold
- Contact finish thickness
- Flash
- Contact form
- Machined
- Contact material
- Brass
- Current rating
- 5A
- Dielectric material
- Polyamide (PA6T), Nylon 6T
- Gender
- Signal
- Ingress protection
- IP67 - Dust Tight, Waterproof
- Material flammability rating
- UL94 V-0
Variant comparison
| Parameter | 781-M15-113R001 | 781-M15-113R141 | 781-M26-113R141 | 781-M44-113R141 |
|---|---|---|---|---|
| Features | Grounding Indents | Board Lock, Grounding Indents | Board Lock, Grounding Indents | Board Lock, Grounding Indents |
| Flange feature | Housing/Shell (Unthreaded) | Housing/Shell (4-40) | Housing/Shell (4-40) | Housing/Shell (4-40) |
| Positions | 15 | 15 | 26 | 44 |
| Shell size, connector layout | 1 (DE, E) High Density | 1 (DE, E) High Density | 2 (DA, A) High Density | 3 (DB, B) High Density |
Request a quote on any NorComp Inc. 781M Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the NorComp Inc. 781M Series variants differ?
- NorComp Inc. 781M Series part numbers differ by features, flange feature, positions and shell size, connector layout. Use the selection guide above to pick by features.
- How many NorComp Inc. 781M Series part numbers are listed?
- 4 NorComp Inc. 781M Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for NorComp Inc. 781M Series?
- Request a quote (RFQ) for any NorComp Inc. 781M Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
