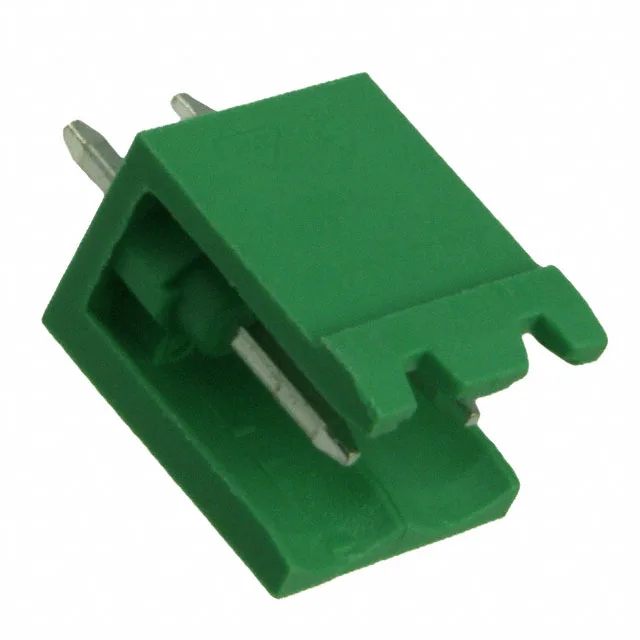

OSTOQ020150
On Shore Technology Inc.
20.300\" (7.62mm)-30°C ~ 105°C
Ref. price$0.6900
Lead time on requestGet quote ›
On Shore Technology Inc. OSTOQ0 Series
41 variants · On Shore Technology Inc.
About the On Shore Technology Inc. OSTOQ0 Series
The On Shore Technology Inc. OSTOQ0 Series series groups 41 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of -, contact material of Brass and contact mating finish of Tin. Variants differ by contact tail length, header orientation and insulation height, so you can match the exact contact tail length your application requires using the selection guide below. All listed On Shore Technology Inc. OSTOQ0 Series part numbers are active and orderable.
Select a variant by
- Contact tail length
- 0.138\" (3.50mm) · 0.157\" (4.00mm)
- Header orientation
- 90°, Right Angle · Vertical
- Insulation height
- 0.138\" (3.50mm) · 0.157\" (4.00mm) · 0.472\" (12.00mm)
- Pitch
- 0.138\" (3.50mm) · 0.150\" (3.81mm) · 0.197\" (5.00mm) · 0.200\" (5.08mm) · 0.300\" (7.62mm)
- Positions
- 2 · 3
- Positions per level
- 2 · 3
- Type
- Header, Male Pins, Shrouded (2 Side) · Header, Male Pins, Shrouded (4 Side)
Shared specifications
- Color
- -
- Contact material
- Brass
- Contact mating finish
- Tin
- Current - IEC
- -
- Features
- -
- Housing material
- Thermoplastic
- Ingress protection
- -
- Material flammability rating
- -
- Mounting type
- Solder
- Number of levels
- 1
- Operating temperature
- -30°C ~ 105°C
- Package
- Bulk
Variant comparison
| Parameter | OSTOQ020150 | OSTOQ021251 | OSTOQ023250 | OSTOQ025350 | OSTOQ025450 | OSTOQ027050 |
|---|---|---|---|---|---|---|
| Contact tail length | 0.157\" (4.00mm) | 0.138\" (3.50mm) | 0.138\" (3.50mm) | 0.157\" (4.00mm) | 0.157\" (4.00mm) | 0.157\" (4.00mm) |
| Header orientation | Vertical | 90°, Right Angle | Vertical | Vertical | Vertical | Vertical |
| Insulation height | 0.157\" (4.00mm) | 0.138\" (3.50mm) | 0.138\" (3.50mm) | 0.157\" (4.00mm) | 0.472\" (12.00mm) | 0.157\" (4.00mm) |
| Pitch | 0.300\" (7.62mm) | 0.138\" (3.50mm) | 0.150\" (3.81mm) | 0.200\" (5.08mm) | 0.200\" (5.08mm) | 0.197\" (5.00mm) |
| Positions | 2 | 2 | 2 | 2 | 2 | 2 |
| Positions per level | 2 | 2 | 2 | 2 | 2 | 2 |
| Type | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (2 Side) | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (2 Side) |
Request a quote on any On Shore Technology Inc. OSTOQ0 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the On Shore Technology Inc. OSTOQ0 Series variants differ?
- On Shore Technology Inc. OSTOQ0 Series part numbers differ by contact tail length, header orientation, insulation height and pitch. Use the selection guide above to pick by contact tail length.
- How many On Shore Technology Inc. OSTOQ0 Series part numbers are listed?
- 41 On Shore Technology Inc. OSTOQ0 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for On Shore Technology Inc. OSTOQ0 Series?
- Request a quote (RFQ) for any On Shore Technology Inc. OSTOQ0 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
