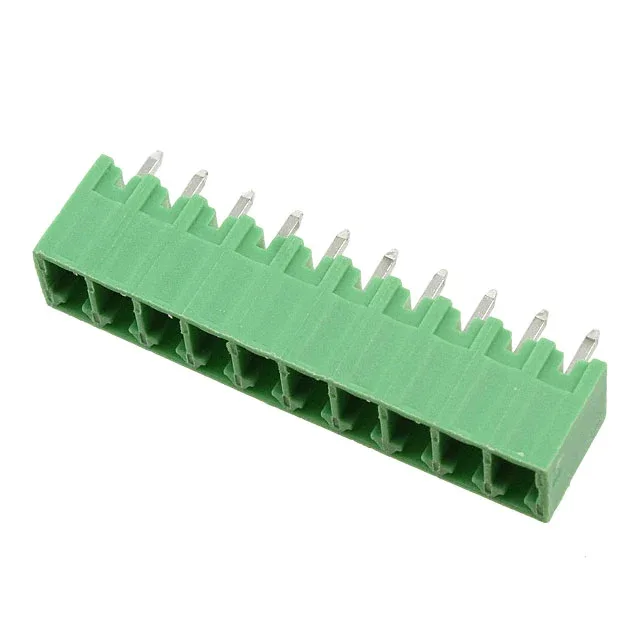

OSTOQ101251
On Shore Technology Inc.
0.138\" (3.50mm)10-30°C ~ 105°C
Ref. price$1.9100
Lead time on requestGet quote ›
On Shore Technology Inc. OSTOQ1 Series
10 variants · On Shore Technology Inc.
About the On Shore Technology Inc. OSTOQ1 Series
The On Shore Technology Inc. OSTOQ1 Series series groups 10 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of -, contact mating finish of Tin and current - IEC of -. Variants differ by contact material, contact tail length and features, so you can match the exact contact material your application requires using the selection guide below. All listed On Shore Technology Inc. OSTOQ1 Series part numbers are active and orderable.
Select a variant by
- Contact material
- - · Brass
- Contact tail length
- 0.138\" (3.50mm) · 0.157\" (4.00mm)
- Features
- - · Mating Flange
- Header orientation
- 90°, Right Angle · Vertical
- Insulation height
- 0.138\" (3.50mm) · 0.157\" (4.00mm)
- Material flammability rating
- - · UL94 V-0
- Operating temperature
- -40°C ~ 115°C · -30°C ~ 105°C
- Pitch
- 0.138\" (3.50mm) · 0.150\" (3.81mm) · 0.197\" (5.00mm) · 0.200\" (5.08mm)
Shared specifications
- Color
- -
- Contact mating finish
- Tin
- Current - IEC
- -
- Housing material
- Thermoplastic
- Ingress protection
- -
- Mounting type
- Solder
- Number of levels
- 1
- Package
- Bulk
- Plug wire entry
- -
- Screw size
- -
- Termination style
- -
- Torque - screw
- -
Variant comparison
| Parameter | OSTOQ101251 | OSTOQ103250 | OSTOQ103251 | OSTOQ105451 | OSTOQ123250 | OSTOQ123251 |
|---|---|---|---|---|---|---|
| Contact material | Brass | Brass | Brass | - | Brass | Brass |
| Contact tail length | 0.138\" (3.50mm) | 0.138\" (3.50mm) | 0.138\" (3.50mm) | 0.157\" (4.00mm) | 0.138\" (3.50mm) | 0.138\" (3.50mm) |
| Features | - | - | - | - | - | - |
| Header orientation | 90°, Right Angle | Vertical | 90°, Right Angle | 90°, Right Angle | Vertical | 90°, Right Angle |
| Insulation height | 0.138\" (3.50mm) | 0.138\" (3.50mm) | 0.138\" (3.50mm) | 0.157\" (4.00mm) | 0.138\" (3.50mm) | 0.138\" (3.50mm) |
| Material flammability rating | - | - | - | - | - | - |
| Operating temperature | -30°C ~ 105°C | -30°C ~ 105°C | -30°C ~ 105°C | -40°C ~ 115°C | -30°C ~ 105°C | -30°C ~ 105°C |
| Pitch | 0.138\" (3.50mm) | 0.150\" (3.81mm) | 0.150\" (3.81mm) | 0.200\" (5.08mm) | 0.150\" (3.81mm) | 0.150\" (3.81mm) |
Request a quote on any On Shore Technology Inc. OSTOQ1 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the On Shore Technology Inc. OSTOQ1 Series variants differ?
- On Shore Technology Inc. OSTOQ1 Series part numbers differ by contact material, contact tail length, features and header orientation. Use the selection guide above to pick by contact material.
- How many On Shore Technology Inc. OSTOQ1 Series part numbers are listed?
- 10 On Shore Technology Inc. OSTOQ1 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for On Shore Technology Inc. OSTOQ1 Series?
- Request a quote (RFQ) for any On Shore Technology Inc. OSTOQ1 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
