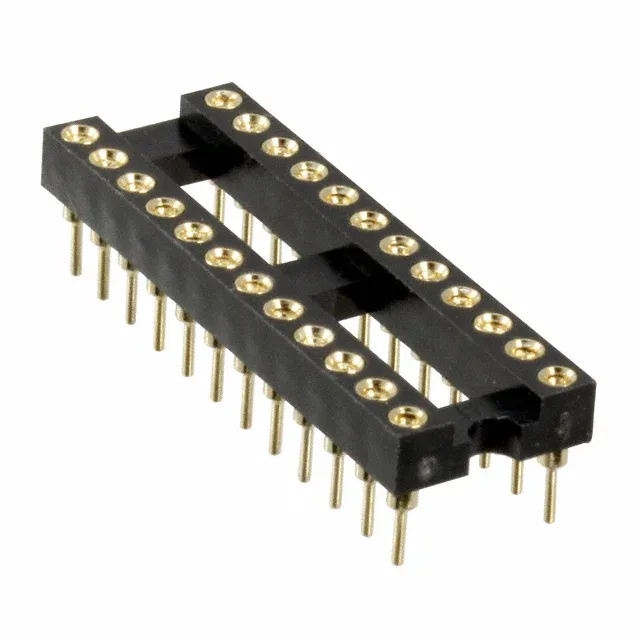

On Shore Technology Inc. SA24 Series

3 variants · On Shore Technology Inc.

About the On Shore Technology Inc. SA24 Series

The On Shore Technology Inc. SA24 Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish - mating of Gold, contact finish thickness - mating of Flash and contact material - mating of Beryllium Copper. Variants differ by contact finish - post, contact finish thickness - post and type, so you can match the exact contact finish - post your application requires using the selection guide below. All listed On Shore Technology Inc. SA24 Series part numbers are active and orderable.

Select a variant by

Contact finish - post: Gold · Tin
Contact finish thickness - post: 80.0µin (2.03µm) · 200.0µin (5.08µm)
Type: DIP, 0.3\" (7.62mm) Row Spacing · DIP, 0.6\" (15.24mm) Row Spacing

Shared specifications

Contact finish - mating: Gold
Contact finish thickness - mating: Flash
Contact material - mating: Beryllium Copper
Contact material - post: Brass
Contact resistance: 4mOhm
Current rating: 3 A
Features: Open Frame
Housing material: Thermoplastic, Polyester, Glass Filled
Material flammability rating: UL94 V-0
Mounting type: Through Hole
Number of positions or pins: 24 (2 x 12)
Operating temperature: -40°C ~ 105°C

Variant comparison

Parameter	SA243040	SA246000	SA246040
Contact finish - post	Gold	Tin	Gold
Contact finish thickness - post	80.0µin (2.03µm)	200.0µin (5.08µm)	80.0µin (2.03µm)
Type	DIP, 0.3\" (7.62mm) Row Spacing	DIP, 0.6\" (15.24mm) Row Spacing	DIP, 0.6\" (15.24mm) Row Spacing

Request a quote on any On Shore Technology Inc. SA24 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the On Shore Technology Inc. SA24 Series variants differ?: On Shore Technology Inc. SA24 Series part numbers differ by contact finish - post, contact finish thickness - post and type. Use the selection guide above to pick by contact finish - post.
How many On Shore Technology Inc. SA24 Series part numbers are listed?: 3 On Shore Technology Inc. SA24 Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for On Shore Technology Inc. SA24 Series?: Request a quote (RFQ) for any On Shore Technology Inc. SA24 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
