Oupiin 2015-2X06G00D-7.4-6.2-0.8T-P
MPN2015-2X06G00D-7.4-6.2-0.8T-P
Active

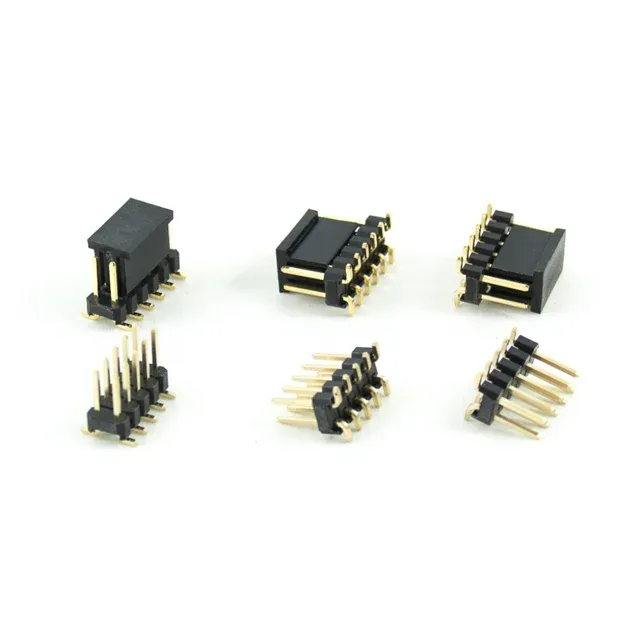

PIN HEADER, DOUBLE ROW, 12 PIN,
$0.74Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series2015
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 2015 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.098\" (2.50mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Features | Pick and Place |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.059\" (1.50mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact length - mating | 0.244\" (6.20mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
