7936-09FFH1A
Oupiin
Board Lock9, 9Black
Ref. price$5.91
Lead time on requestGet quote ›

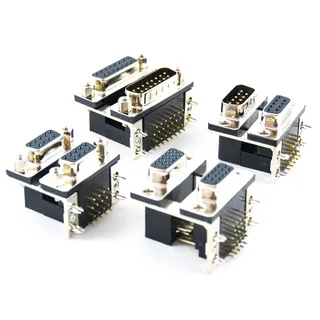

Oupiin 7936 Series
12 variants · Oupiin
About the Oupiin 7936 Series
The Oupiin 7936 Series series groups 12 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common backset spacing of 0.318\" (8.08mm), color of Black and contact finish of Gold. Variants differ by connector type, contact material and dielectric material, so you can match the exact connector type your application requires using the selection guide below. All listed Oupiin 7936 Series part numbers are active and orderable.
Select a variant by
- Connector type
- Plug, Male Pins · Plug, Male Pins; Receptacle, Female Sockets · Receptacle, Female Sockets
- Contact material
- Brass · Copper Alloy
- Dielectric material
- Polybutylene Terephthalate (PBT) · Polybutylene Terephthalate (PBT), Glass Filled · Polyester Thermoplastic, Glass Filled
- Features
- Board Lock · Board Lock, Grounding Indents · Ground Strap, Grounding Indents
- Flange feature
- Housing/Shell (4-40) · Mating Side, Female Screwlock (4-40)
- Positions
- 9, 9 · 15, 15 · 25, 25
- Shell material, finish
- Metal, Nickel Plated · Steel, Nickel Plated
- Shell size, connector layout
- 1 (DE, E); 1 (DE, E) · 2 (DA, A); 2 (DA, A) · 3 (DB, B); 3 (DB, B)
Shared specifications
- Backset spacing
- 0.318\" (8.08mm)
- Color
- Black
- Contact finish
- Gold
- Current rating
- 1A
- Gender
- Signal
- Material flammability rating
- UL94 V-0
- Mounting type
- Through Hole, Right Angle
- Operating temperature
- -55°C ~ 105°C
- Package
- Tray
- Rows
- 2, 2
- Termination
- Solder
Variant comparison
| Parameter | 7936-09FFH1A | 7936-09FMB1A | 7936-09FMB2A | 7936-09MMB1A | 7936-09MMY1A | 7936-15FMB1A |
|---|---|---|---|---|---|---|
| Connector type | Receptacle, Female Sockets | Plug, Male Pins; Receptacle, Female Sockets | Plug, Male Pins; Receptacle, Female Sockets | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins; Receptacle, Female Sockets |
| Contact material | Copper Alloy | Brass | Brass | Copper Alloy | Brass | Brass |
| Dielectric material | Polyester Thermoplastic, Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polyester Thermoplastic, Glass Filled | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Lock | Board Lock, Grounding Indents | Board Lock, Grounding Indents | Board Lock, Grounding Indents | Board Lock, Grounding Indents | Board Lock, Grounding Indents |
| Flange feature | Housing/Shell (4-40) | Housing/Shell (4-40) | Housing/Shell (4-40) | Housing/Shell (4-40) | Mating Side, Female Screwlock (4-40) | Housing/Shell (4-40) |
| Positions | 9, 9 | 9, 9 | 9, 9 | 9, 9 | 9, 9 | 15, 15 |
| Shell material, finish | Metal, Nickel Plated | Steel, Nickel Plated | Steel, Nickel Plated | Metal, Nickel Plated | Steel, Nickel Plated | Steel, Nickel Plated |
| Shell size, connector layout | 1 (DE, E); 1 (DE, E) | 1 (DE, E); 1 (DE, E) | 1 (DE, E); 1 (DE, E) | 1 (DE, E); 1 (DE, E) | 1 (DE, E); 1 (DE, E) | 2 (DA, A); 2 (DA, A) |
Request a quote on any Oupiin 7936 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Oupiin 7936 Series variants differ?
- Oupiin 7936 Series part numbers differ by connector type, contact material, dielectric material and features. Use the selection guide above to pick by connector type.
- How many Oupiin 7936 Series part numbers are listed?
- 12 Oupiin 7936 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Oupiin 7936 Series?
- Request a quote (RFQ) for any Oupiin 7936 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
