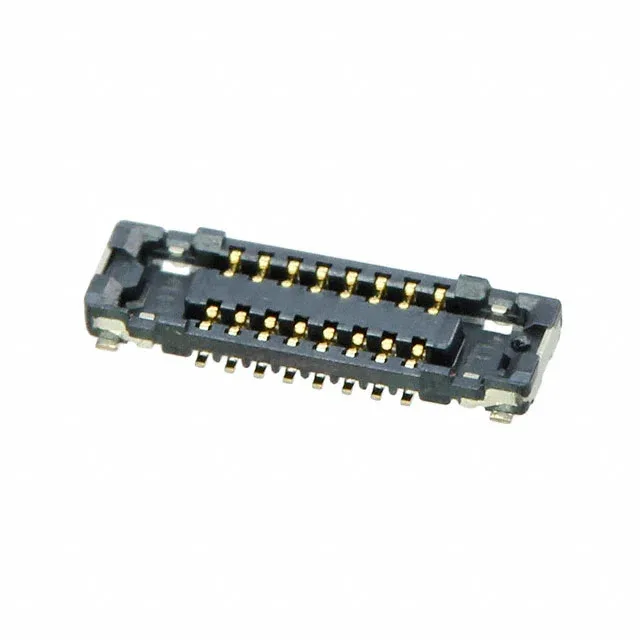

AXG112144A
Panasonic Electric Works
120.014\" (0.35mm)S35
Ref. price$1.9600
Lead time on requestGet quote ›
Panasonic Electric Works AXG1 Series
11 variants · Panasonic Electric Works
About the Panasonic Electric Works AXG1 Series
The Panasonic Electric Works AXG1 Series series groups 11 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Socket, Center Strip Contacts, contact finish of Gold and features of Solder Retention. Variants differ by contact finish thickness, height above board and mated stacking heights, so you can match the exact contact finish thickness your application requires using the selection guide below. All listed Panasonic Electric Works AXG1 Series part numbers are active and orderable.
Select a variant by
- Contact finish thickness
- - · 4.00µin (0.100µm)
- Height above board
- 0.023\" (0.59mm) · 0.031\" (0.80mm)
- Mated stacking heights
- 0.6mm · 0.8mm
- Positions
- 12 · 16 · 20 · 24 · 30 · 34 · 40 · 44 · 50
Shared specifications
- Connector type
- Socket, Center Strip Contacts
- Contact finish
- Gold
- Features
- Solder Retention
- Mounting type
- Surface Mount
- Package
- Strip
- Pitch
- 0.014\" (0.35mm)
- Rows
- 2
Variant comparison
| Parameter | AXG112144A | AXG112224A | AXG116144A | AXG120144A | AXG124144A | AXG130144A |
|---|---|---|---|---|---|---|
| Contact finish thickness | - | 4.00µin (0.100µm) | - | - | - | - |
| Height above board | 0.023\" (0.59mm) | 0.031\" (0.80mm) | 0.023\" (0.59mm) | 0.023\" (0.59mm) | 0.023\" (0.59mm) | 0.023\" (0.59mm) |
| Mated stacking heights | 0.6mm | 0.8mm | 0.6mm | 0.6mm | 0.6mm | 0.6mm |
| Positions | 12 | 12 | 16 | 20 | 24 | 30 |
Request a quote on any Panasonic Electric Works AXG1 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Panasonic Electric Works AXG1 Series variants differ?
- Panasonic Electric Works AXG1 Series part numbers differ by contact finish thickness, height above board, mated stacking heights and positions. Use the selection guide above to pick by contact finish thickness.
- How many Panasonic Electric Works AXG1 Series part numbers are listed?
- 11 Panasonic Electric Works AXG1 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Panasonic Electric Works AXG1 Series?
- Request a quote (RFQ) for any Panasonic Electric Works AXG1 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
