How do the Panasonic Electric Works AXK7 Series variants differ?

Panasonic Electric Works AXK7 Series part numbers differ by features, height above board, mated stacking heights and package. Use the selection guide above to pick by features.

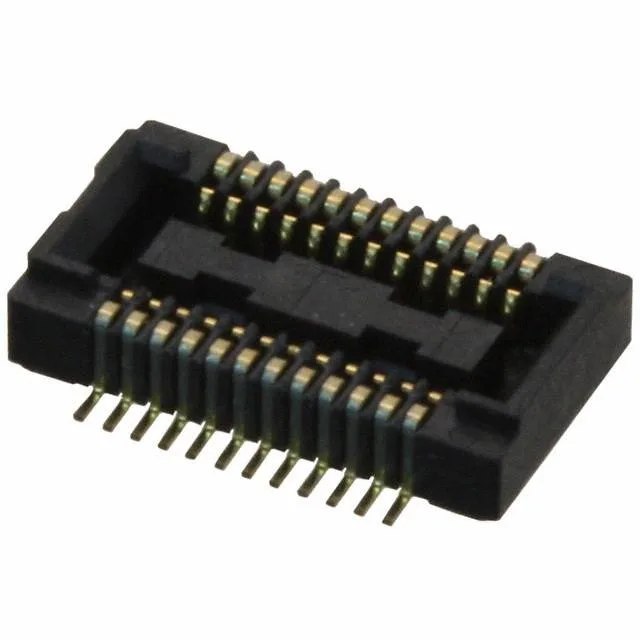

Panasonic Electric Works AXK7 Series

12 variants · Panasonic Electric Works

About the Panasonic Electric Works AXK7 Series

The Panasonic Electric Works AXK7 Series series groups 12 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Socket, Center Strip, Outer Edge Contacts, contact finish of Gold and contact finish thickness of -. Variants differ by features, height above board and mated stacking heights, so you can match the exact features your application requires using the selection guide below. All listed Panasonic Electric Works AXK7 Series part numbers are active and orderable.

Select a variant by

Features: - · Board Guide
Height above board: 0.059\" (1.50mm) · 0.076\" (1.92mm) · 0.095\" (2.41mm)
Mated stacking heights: 1.5mm · 2mm · 2.5mm · 2.5mm, 3mm
Package: Cut Tape (CT) · Strip · Tape & Reel (TR) Cut Tape (CT)
Positions: 24 · 30 · 40 · 50 · 60 · 70 · 80 · 100

Shared specifications

Connector type: Socket, Center Strip, Outer Edge Contacts
Contact finish: Gold
Contact finish thickness: -
Mounting type: Surface Mount
Pitch: 0.016\" (0.40mm)
Rows: 2

Variant comparison

Parameter	AXK700147G	AXK724147G	AXK730147G	AXK740147G	AXK740247A	AXK740347A
Features	-	-	-	-	-	-
Height above board	0.059\" (1.50mm)	0.059\" (1.50mm)	0.059\" (1.50mm)	0.059\" (1.50mm)	0.076\" (1.92mm)	0.095\" (2.41mm)
Mated stacking heights	1.5mm	1.5mm	1.5mm	1.5mm	2mm	2.5mm, 3mm
Package	Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Strip	Strip
Positions	100	24	30	40	40	40

Request a quote on any Panasonic Electric Works AXK7 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the Panasonic Electric Works AXK7 Series variants differ?: Panasonic Electric Works AXK7 Series part numbers differ by features, height above board, mated stacking heights and package. Use the selection guide above to pick by features.
How many Panasonic Electric Works AXK7 Series part numbers are listed?: 12 Panasonic Electric Works AXK7 Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for Panasonic Electric Works AXK7 Series?: Request a quote (RFQ) for any Panasonic Electric Works AXK7 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
