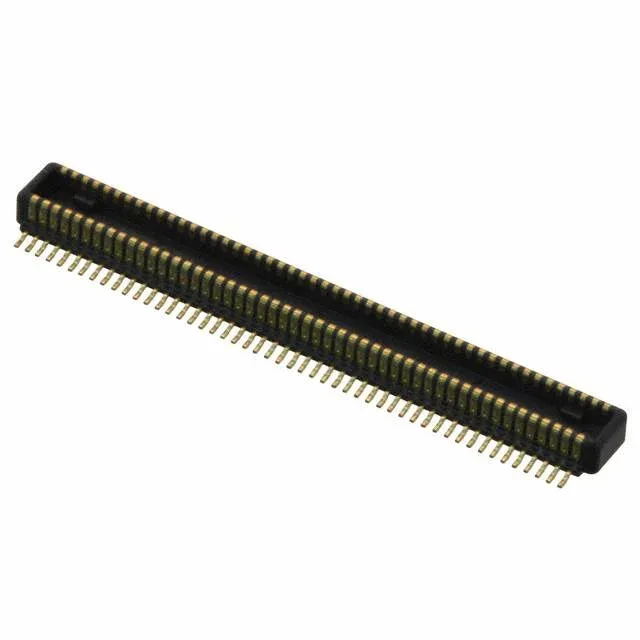

AXK800145WG
Panasonic Electric Works
100Tape & Reel (TR) Cut Tape (CT)0.016\" (0.40mm)
Ref. price$3.8900
Lead time on requestGet quote ›
Panasonic Electric Works AXK8 Series
13 variants · Panasonic Electric Works
About the Panasonic Electric Works AXK8 Series
The Panasonic Electric Works AXK8 Series series groups 13 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Header, Outer Shroud Contacts, contact finish of Gold and contact finish thickness of -. Variants differ by features, height above board and mated stacking heights, so you can match the exact features your application requires using the selection guide below. All listed Panasonic Electric Works AXK8 Series part numbers are active and orderable.
Select a variant by
- Features
- - · Board Guide
- Height above board
- 0.052\" (1.32mm) · 0.089\" (2.26mm)
- Mated stacking heights
- 1.5mm, 2mm, 2.5mm · 3mm, 3.5mm
- Package
- Strip · Tape & Reel (TR) Cut Tape (CT)
- Positions
- 20 · 24 · 30 · 40 · 50 · 70 · 80 · 100
Shared specifications
- Connector type
- Header, Outer Shroud Contacts
- Contact finish
- Gold
- Contact finish thickness
- -
- Mounting type
- Surface Mount
- Pitch
- 0.016\" (0.40mm)
- Rows
- 2
Variant comparison
| Parameter | AXK800145WG | AXK820145WA | AXK820145WG | AXK824145WG | AXK830145WG | AXK840145WA |
|---|---|---|---|---|---|---|
| Features | - | - | - | - | - | - |
| Height above board | 0.052\" (1.32mm) | 0.052\" (1.32mm) | 0.052\" (1.32mm) | 0.052\" (1.32mm) | 0.052\" (1.32mm) | 0.052\" (1.32mm) |
| Mated stacking heights | 1.5mm, 2mm, 2.5mm | 1.5mm, 2mm, 2.5mm | 1.5mm, 2mm, 2.5mm | 1.5mm, 2mm, 2.5mm | 1.5mm, 2mm, 2.5mm | 1.5mm, 2mm, 2.5mm |
| Package | Tape & Reel (TR) Cut Tape (CT) | Strip | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Strip |
| Positions | 100 | 20 | 20 | 24 | 30 | 40 |
Request a quote on any Panasonic Electric Works AXK8 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Panasonic Electric Works AXK8 Series variants differ?
- Panasonic Electric Works AXK8 Series part numbers differ by features, height above board, mated stacking heights and package. Use the selection guide above to pick by features.
- How many Panasonic Electric Works AXK8 Series part numbers are listed?
- 13 Panasonic Electric Works AXK8 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Panasonic Electric Works AXK8 Series?
- Request a quote (RFQ) for any Panasonic Electric Works AXK8 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
