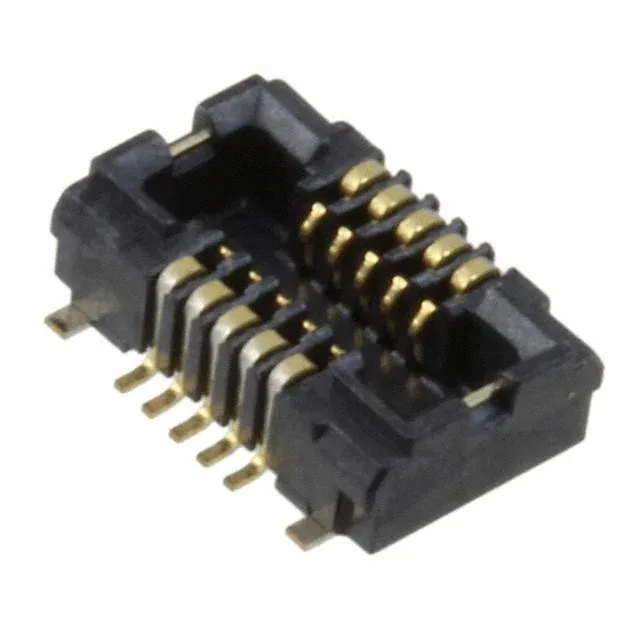

AXT310124
Panasonic Electric Works
10Tape & Reel (TR) Cut Tape (CT)0.016\" (0.40mm)
Ref. price$0.8800
Lead time on requestGet quote ›
Panasonic Electric Works AXT3 Series
14 variants · Panasonic Electric Works
About the Panasonic Electric Works AXT3 Series
The Panasonic Electric Works AXT3 Series series groups 14 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Socket, Outer Shroud Contacts, contact finish of Gold and contact finish thickness of -. Variants differ by height above board, mated stacking heights and package, so you can match the exact height above board your application requires using the selection guide below. All listed Panasonic Electric Works AXT3 Series part numbers are active and orderable.
Select a variant by
- Height above board
- 0.057\" (1.45mm) · 0.096\" (2.45mm)
- Mated stacking heights
- 1.5mm · 1.5mm, 2mm · 2.5mm, 3mm
- Package
- Strip · Tape & Reel (TR) Cut Tape (CT)
- Positions
- 10 · 16 · 20 · 24 · 30 · 34 · 40 · 50
Shared specifications
- Connector type
- Socket, Outer Shroud Contacts
- Contact finish
- Gold
- Contact finish thickness
- -
- Features
- Solder Retention
- Mounting type
- Surface Mount
- Pitch
- 0.016\" (0.40mm)
- Rows
- 2
Variant comparison
| Parameter | AXT310124 | AXT316124 | AXT320124 | AXT320124A | AXT320224 | AXT324124 |
|---|---|---|---|---|---|---|
| Height above board | 0.057\" (1.45mm) | 0.057\" (1.45mm) | 0.057\" (1.45mm) | 0.057\" (1.45mm) | 0.096\" (2.45mm) | 0.057\" (1.45mm) |
| Mated stacking heights | 1.5mm | 1.5mm | 1.5mm | 1.5mm | 2.5mm, 3mm | 1.5mm, 2mm |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Strip | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
| Positions | 10 | 16 | 20 | 20 | 20 | 24 |
Request a quote on any Panasonic Electric Works AXT3 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Panasonic Electric Works AXT3 Series variants differ?
- Panasonic Electric Works AXT3 Series part numbers differ by height above board, mated stacking heights, package and positions. Use the selection guide above to pick by height above board.
- How many Panasonic Electric Works AXT3 Series part numbers are listed?
- 14 Panasonic Electric Works AXT3 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Panasonic Electric Works AXT3 Series?
- Request a quote (RFQ) for any Panasonic Electric Works AXT3 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
