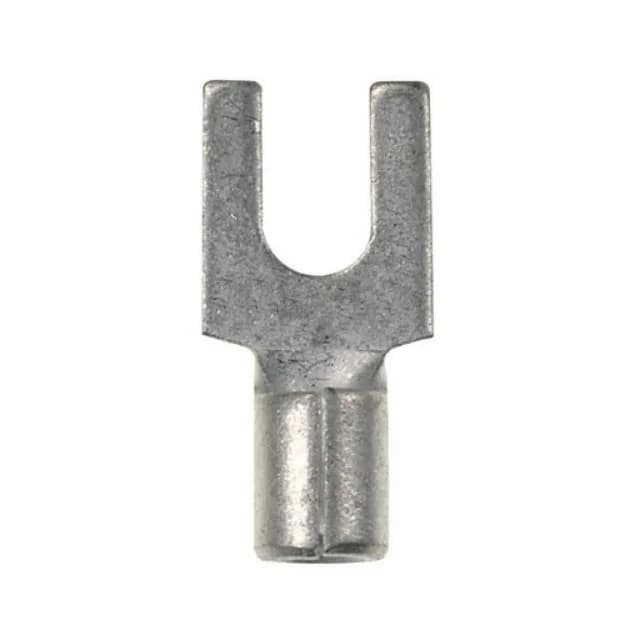

P22-6F-C
Panduit Corp
Pan-Term®BulkFree Hanging (In-Line)
Ref. price$0.56
Lead time on requestGet quote
Panduit Corp P226 Series
2 variants · Panduit Corp
About the Panduit Corp P226 Series
The Panduit Corp P226 Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish of Tin, contact material of Copper and features of Brazed Seam. Variants differ by length - overall, terminal type and width - outer edges, so you can match the exact length - overall your application requires using the selection guide below. All listed Panduit Corp P226 Series part numbers are active and orderable.
Select a variant by
- Length - overall
- 0.520\" (13.21mm) · 0.590\" (14.99mm)
- Terminal type
- Circular · Standard
- Width - outer edges
- 0.205\" (5.20mm) · 0.250\" (6.35mm)
Shared specifications
- Contact finish
- Tin
- Contact material
- Copper
- Features
- Brazed Seam
- Insulation
- Non-Insulated
- Mounting
- Free Hanging (In-Line)
- Package
- Bulk
- Stud (Tab size)
- 6 Stud
- Termination
- Crimp
- Wire gauge
- 22-26 AWG
Variant comparison
| Parameter | P22-6F-C | P22-6R-M |
|---|---|---|
| Length - overall | 0.590\" (14.99mm) | 0.520\" (13.21mm) |
| Terminal type | Standard | Circular |
| Width - outer edges | 0.250\" (6.35mm) | 0.205\" (5.20mm) |
Request a quote on any Panduit Corp P226 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
