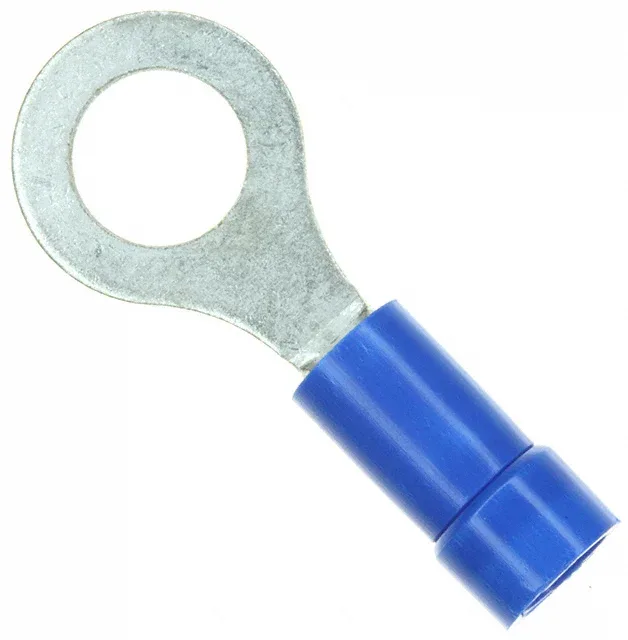

Panduit Corp PV14 Series

12 variants · Panduit Corp

About the Panduit Corp PV14 Series

The Panduit Corp PV14 Series series groups 12 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Blue, contact finish of Tin and contact material of Copper. Variants differ by features, insulation diameter and length - overall, so you can match the exact features your application requires using the selection guide below. All listed Panduit Corp PV14 Series part numbers are active and orderable.

Select a variant by

Features: - · Brazed Seam · Brazed Seam, Serrated Termination
Insulation diameter: 0.170\" (4.32mm) · 0.200\" (5.08mm)
Length - overall: 0.760\" (19.30mm) · 0.860\" (21.84mm) · 0.920\" (23.37mm) · 0.960\" (24.38mm) · 1.120\" (28.45mm) · 1.150\" (29.21mm)
Package: Bulk · Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT)
Stud (Tab size): 1/4 Stud · 3/8 Stud · 4 Stud · 6 Stud · 8 Stud · 10 Stud
Thickness: 0.031\" (0.79mm) · 0.032\" (0.81mm)
Width - outer edges: 0.250\" (6.35mm) · 0.310\" (7.87mm) · 0.460\" (11.68mm) · 0.530\" (13.46mm)

Shared specifications

Color: Blue
Contact finish: Tin
Contact material: Copper
Insulation: Insulated
Material - insulation: Vinyl
Mounting type: Free Hanging (In-Line)
Terminal type: Circular
Termination: Crimp
Wire gauge: 14-16 AWG

Variant comparison

Parameter	PV14-10RB-3K	PV14-10RX-M	PV14-14R-M	PV14-38RB-2K	PV14-4RB-3K	PV14-6RB-3K
Features	-	Brazed Seam, Serrated Termination	Brazed Seam	-	-	-
Insulation diameter	0.170\" (4.32mm)	0.200\" (5.08mm)	0.170\" (4.32mm)	0.170\" (4.32mm)	0.170\" (4.32mm)	0.170\" (4.32mm)
Length - overall	0.860\" (21.84mm)	0.960\" (24.38mm)	1.120\" (28.45mm)	1.150\" (29.21mm)	0.760\" (19.30mm)	0.860\" (21.84mm)
Package	Tape & Reel (TR) Cut Tape (CT)	Bulk	Bulk	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR)	Tape & Reel (TR) Cut Tape (CT)
Stud (Tab size)	10 Stud	10 Stud	1/4 Stud	3/8 Stud	4 Stud	6 Stud
Thickness	0.031\" (0.79mm)	0.032\" (0.81mm)	0.032\" (0.81mm)	0.031\" (0.79mm)	0.031\" (0.79mm)	0.031\" (0.79mm)
Width - outer edges	0.310\" (7.87mm)	0.310\" (7.87mm)	0.460\" (11.68mm)	0.530\" (13.46mm)	0.250\" (6.35mm)	0.310\" (7.87mm)

Request a quote on any Panduit Corp PV14 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
