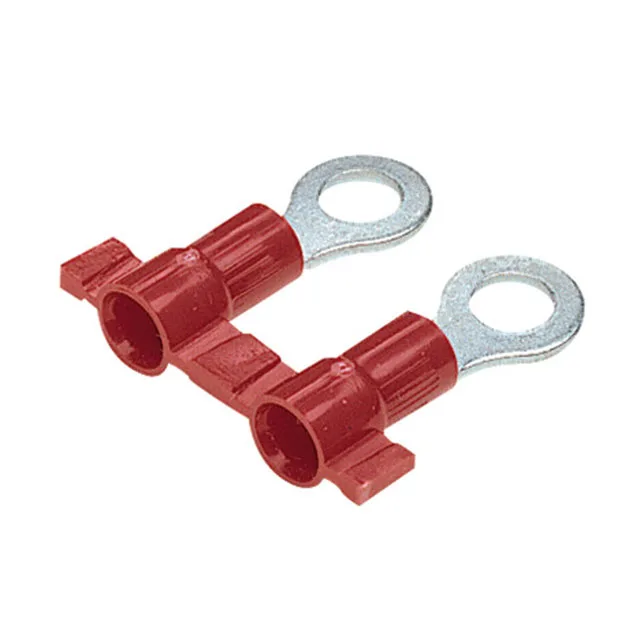

PV18-10R-MY
Panduit Corp
Brazed Seam, Serrated TerminationBulkPan-Term®
Ref. price$0.3900
Lead time on requestGet quote ›
Panduit Corp PV18 Series
10 variants · Panduit Corp
About the Panduit Corp PV18 Series
The Panduit Corp PV18 Series series groups 10 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Red, contact finish of Tin and contact material of Copper. Variants differ by features, length - overall and package, so you can match the exact features your application requires using the selection guide below. All listed Panduit Corp PV18 Series part numbers are active and orderable.
Select a variant by
- Features
- - · Brazed Seam · Brazed Seam, Serrated Termination
- Length - overall
- 0.780\" (19.81mm) · 0.860\" (21.84mm) · 0.910\" (23.11mm) · 0.940\" (23.88mm) · 1.060\" (26.92mm) · 1.110\" (28.19mm)
- Package
- Bulk · Tape & Reel (TR) Cut Tape (CT)
- Stud (Tab size)
- 1/4 Stud · 4 Stud · 5/16 Stud · 6 Stud · 8 Stud · 10 Stud
- Thickness
- 0.031\" (0.79mm) · 0.032\" (0.81mm)
- Width - outer edges
- 0.250\" (6.35mm) · 0.310\" (7.87mm) · 0.450\" (11.43mm) · 0.460\" (11.68mm)
Shared specifications
- Color
- Red
- Contact finish
- Tin
- Contact material
- Copper
- Insulation
- Insulated
- Insulation diameter
- 0.150\" (3.81mm)
- Material - insulation
- Vinyl
- Mounting type
- Free Hanging (In-Line)
- Terminal type
- Circular
- Termination
- Crimp
- Wire gauge
- 18-22 AWG
Variant comparison
| Parameter | PV18-10RB-3K | PV18-10R-MY | PV18-14RB-3K | PV18-14R-CY | PV18-4RB-3K | PV18-56RB-2K |
|---|---|---|---|---|---|---|
| Features | - | Brazed Seam, Serrated Termination | - | Brazed Seam | - | - |
| Length - overall | 0.860\" (21.84mm) | 0.940\" (23.88mm) | 1.060\" (26.92mm) | 1.110\" (28.19mm) | 0.780\" (19.81mm) | 1.060\" (26.92mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) | Bulk | Tape & Reel (TR) Cut Tape (CT) | Bulk | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
| Stud (Tab size) | 10 Stud | 10 Stud | 1/4 Stud | 1/4 Stud | 4 Stud | 5/16 Stud |
| Thickness | 0.031\" (0.79mm) | 0.032\" (0.81mm) | 0.031\" (0.79mm) | 0.032\" (0.81mm) | 0.031\" (0.79mm) | 0.031\" (0.79mm) |
| Width - outer edges | 0.310\" (7.87mm) | 0.310\" (7.87mm) | 0.450\" (11.43mm) | 0.460\" (11.68mm) | 0.250\" (6.35mm) | 0.460\" (11.68mm) |
Request a quote on any Panduit Corp PV18 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Panduit Corp PV18 Series variants differ?
- Panduit Corp PV18 Series part numbers differ by features, length - overall, package and stud (Tab size). Use the selection guide above to pick by features.
- How many Panduit Corp PV18 Series part numbers are listed?
- 10 Panduit Corp PV18 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Panduit Corp PV18 Series?
- Request a quote (RFQ) for any Panduit Corp PV18 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
