Phoenix Contact 1047491
MPN1047491
Active

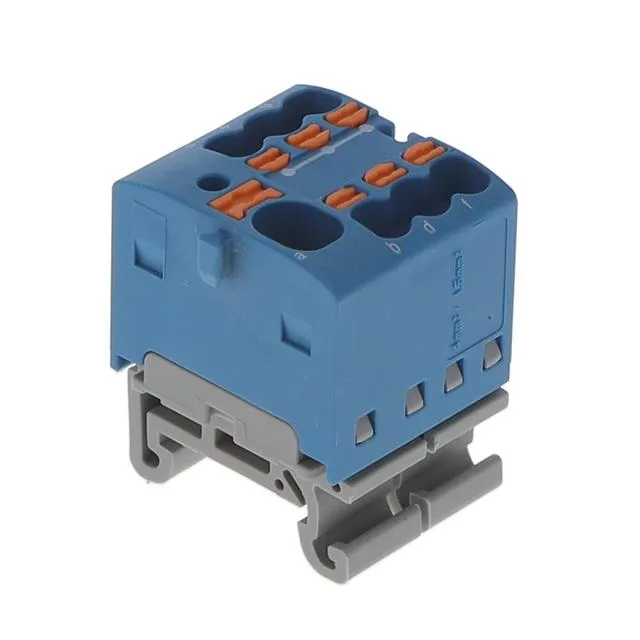

PTFIX 4/6X1 5-NS15A BU
$5.25Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCLIPLINE PTFIX
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Middle |
| Series | CLIPLINE PTFIX |
| Mounting | DIN Rail |
| Voltage - UL | 300 V |
| Voltage - IEC | 500 V |
| Current - UL | 30 A |
| Current - IEC | 17.5 A |
| Terminal - width | 19.0mm |
| Wire gauge or range - AWG | 10-24 AWG |
| Wire gauge or range - mm2 | 0.14-2.5mm² |
| Operating temperature | -60°C ~ 105°C |
| Height | 1.079\" (27.40mm) |
All specifications
| Parameter | Value |
|---|---|
| Housing color | Blue |
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Length | 0.850\" (21.60mm) |
| Package | Bulk |
| Features | Block of 3 |
| Number of levels | 1 |
| Stripping length | 8mm ~ 10mm |
| Termination style | Push In, Spring |
| Positions | 7 |
