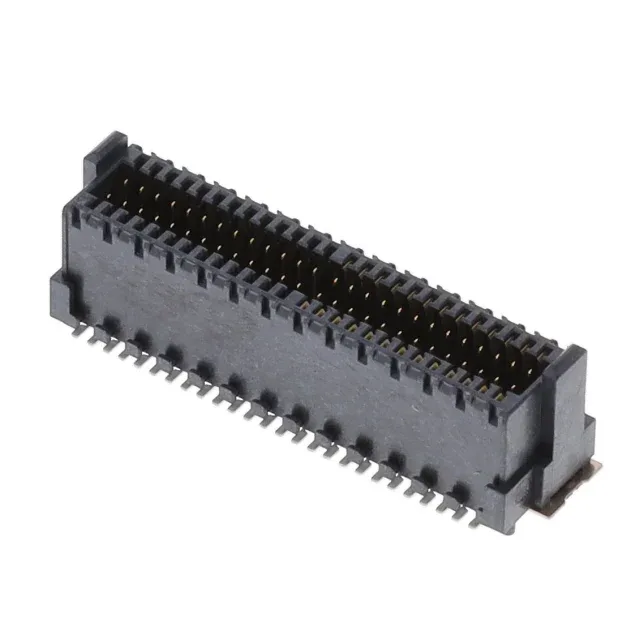

Phoenix Contact 1061700
MPN1061700
Active
SMD MALE CONNECTOR, NOMINAL CURR
$6.94Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCOMBICON FP
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | COMBICON FP |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.281\" (7.15mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Mated stacking heights | 7.5mm, 10.5mm |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.031\" (0.80mm) |
| Positions | 52 |
| Row spacing - mating | 0.047\" (1.20mm) |
| Contact finish - mating | Gold |
