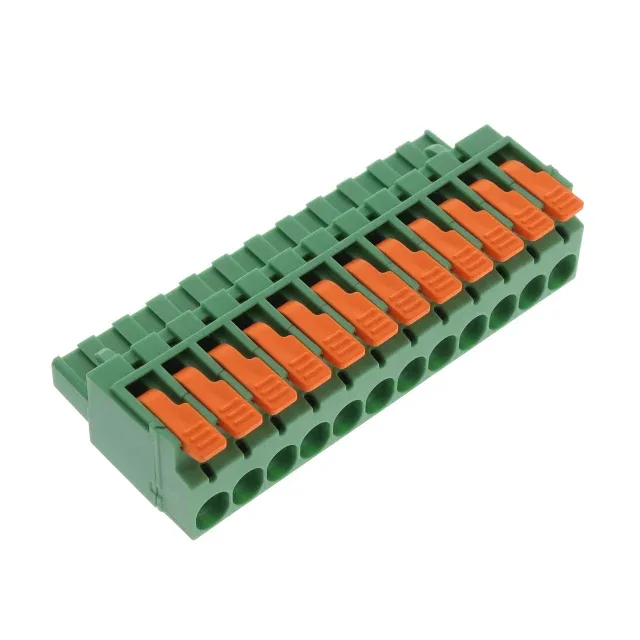

Phoenix Contact 1110595
MPN1110595
Active
PCB CONNECTOR, NOMINAL CROSS SEC
$15.78Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCOMBICON LPC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | COMBICON LPC |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 320 V |
| Current - UL | 16 A |
| Current - IEC | 16A |
| Plug wire entry | 180° |
| Wire strip length | 10mm |
| Wire gauge or range - AWG | 12-26 AWG |
| Wire gauge or range - mm2 | 0.2-2.5mm² |
| Operating temperature | -40°C ~ 105°C |
All specifications
| Parameter | Value |
|---|---|
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.606\" (15.39mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Lever Actuated |
| Number of levels | 1 |
| Termination style | Screwless - Push-In Spring |
| Positions | 12 |
| Positions per level | 12 |
| Contact mating finish | Tin |
