Phoenix Contact 1923759

Phoenix Contact 1923759

MPN1923759
Active

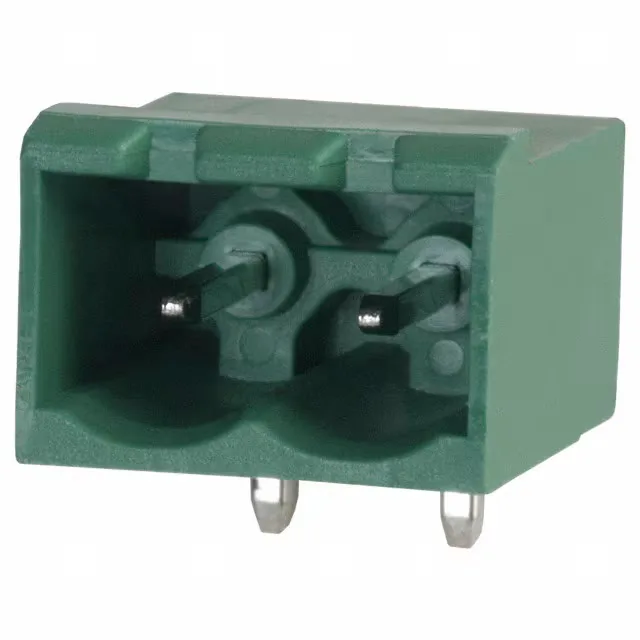

TERM BLOCK HDR 2POS 90DEG 5MM

$1.05Ref. price · indicative, final on quote
Phoenix Contact 1923759 datasheet (PDF)
RoHSROHS3 Compliant
SeriesCOMBICON MSTBA
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1923759 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesCOMBICON MSTBA
MountingThrough Hole
Voltage - UL300 V
Voltage - IEC400 V
Current - UL16 A
Current - IEC16A
ColorGreen
Housing materialPolyamide (PA), Nylon
Insulation height0.339\" (8.61mm)
Material flammability ratingUL94 V-0
Pitch0.197\" (5.00mm)

All specifications

1923759 additional specifications
ParameterValue
PackageBulk
Number of levels1
Termination styleSolder
Header orientation90°, Right Angle
Contact tail length0.138\" (3.50mm)
Positions2
Positions per level2
Contact mating finishTin
