Phoenix Contact 1924088

Phoenix Contact 1924088

MPN1924088
Active

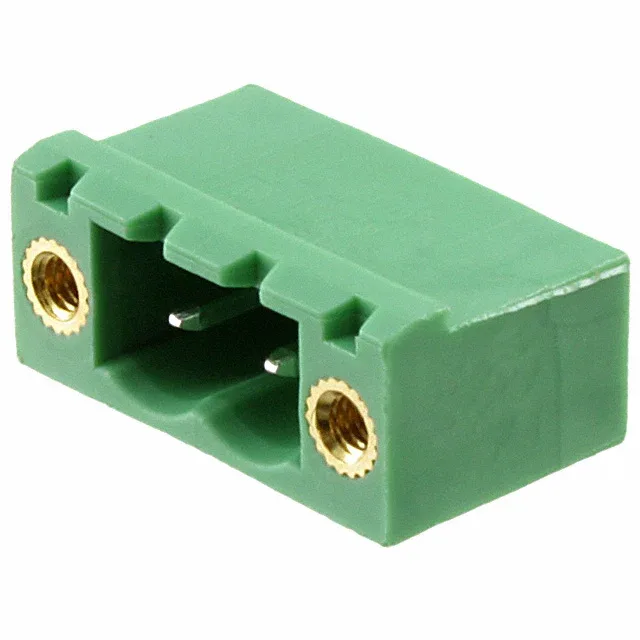

TERM BLOCK HDR 2POS 90DEG 5.08MM

$3.46Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCOMBICON MSTB
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1924088 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesCOMBICON MSTB
MountingThrough Hole
Voltage - UL300 V
Voltage - IEC400 V
Current - UL16 A
Current - IEC16A
ColorGreen
Housing materialPolyamide (PA), Nylon
Insulation height0.339\" (8.61mm)
Material flammability ratingUL94 V-0
Pitch0.200\" (5.08mm)

All specifications

1924088 additional specifications
ParameterValue
PackageBulk
FeaturesMating and Mounting Flange
Number of levels1
Termination styleSolder
Header orientation90°, Right Angle
Contact tail length0.138\" (3.50mm)
Positions2
Positions per level2
Contact mating finishTin
