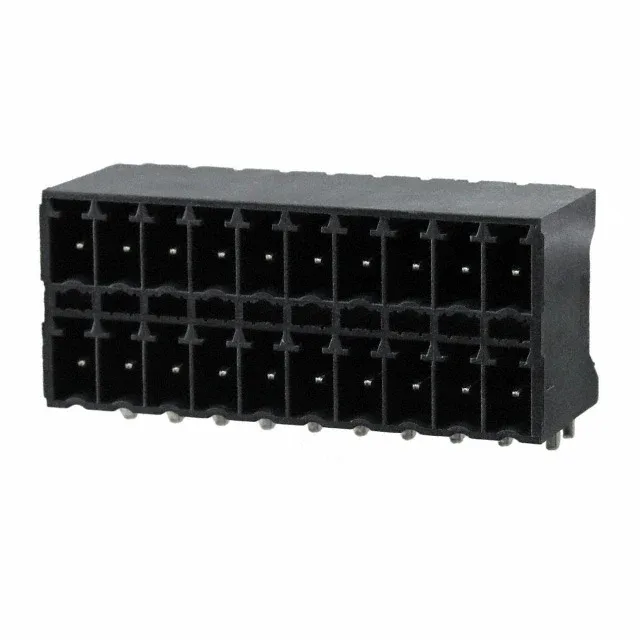

TERM BLOCK HDR 20POS 90DEG 3.5MM
$15.31Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | COMBICON MCDN |
| Mounting type | Through Hole |
| Voltage - UL | 150 V |
| Voltage - IEC | 250 V |
| Current - UL | 8 A |
| Current - IEC | 8A per Position |
| Color | Black |
| Housing material | Liquid Crystal Polymer (LCP) |
| Insulation height | 0.598\" (15.19mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Number of levels | 2 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.102\" (2.60mm) |
| Positions | 20 |
| Positions per level | 10 |
| Contact mating finish | Tin |
Sourcing this connector
Phoenix Contact 1953790 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Phoenix Contact and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
