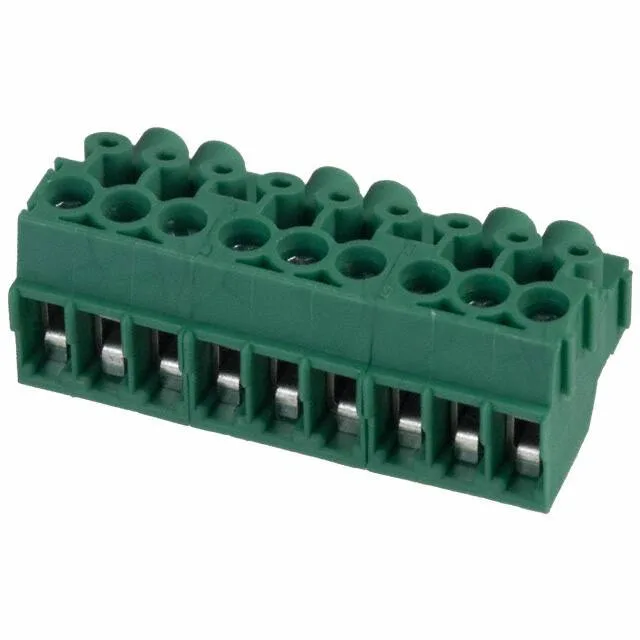

Phoenix Contact 1984086
MPN1984086
Active
TERM BLOCK PLUG 9POS 3.5MM
$2.73Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCOMBICON PT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug for Unshrouded Header |
| Series | COMBICON PT |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 400 V |
| Current - UL | 10 A |
| Current - IEC | 8A |
| Plug wire entry | 90° and 180° |
| Wire strip length | 5mm |
| Wire gauge or range - AWG | 16-26 AWG |
| Wire gauge or range - mm2 | 0.2-1.5mm² |
| Color | Green |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.437\" (11.10mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Screw size | M2 |
| Torque - screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 9 |
| Positions per level | 9 |
| Contact mating finish | Tin |
