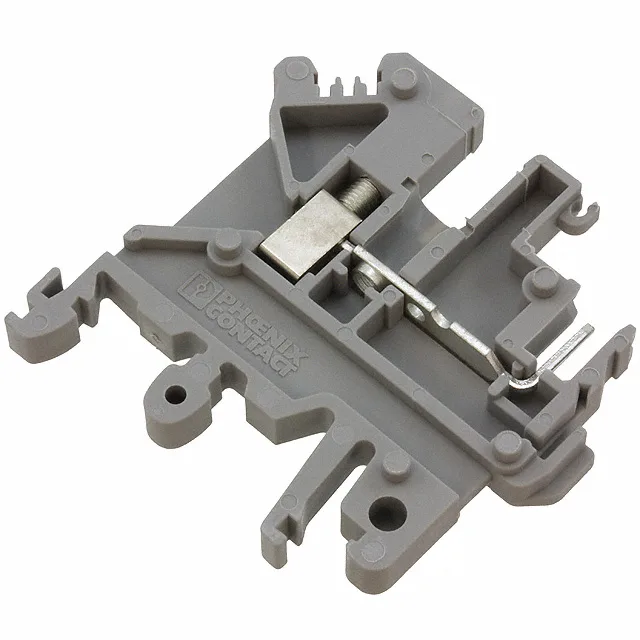

Phoenix Contact 3002076
MPN3002076
Active
TERM BLK PLUG 2POS 5.08MM GRAY
$7.09Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCLIPLINE UK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug Connection |
| Series | CLIPLINE UK |
| Mounting | DIN Rail |
| Voltage - UL | 300 V |
| Voltage - IEC | 250 V |
| Current - UL | 20 A |
| Current - IEC | 12 A |
| Terminal - width | 5.1mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.2-4mm² |
| Height | 2.146\" (54.50mm) |
| Housing color | Gray |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Length | 1.880\" (47.75mm) |
| Package | Bulk |
| Features | Indicators |
| Number of levels | 1 |
| Stripping length | 8mm |
| Termination style | Plug Receptacles, Screw |
| Positions | 2 |
