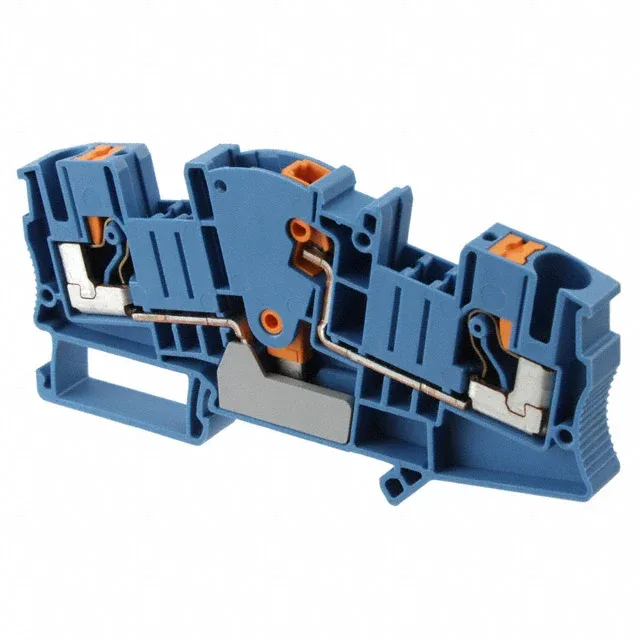

Phoenix Contact 3035695
MPN3035695
Active
CONN TERM BLK DISCONNECT 8-20AWG
$16.46Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCLIPLINE PTME
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Disconnect |
| Series | CLIPLINE PTME |
| Disconnect type | Switch, Lever |
| Voltage - UL | 600V |
| Voltage - IEC | 1000V |
| Current - UL | 30 A |
| Current - IEC | 30 A |
| Terminal - width | 8.2mm |
| Wire gauge or range - AWG | 8-20 AWG |
| Wire gauge or range - mm2 | 0.5-10mm² |
| Color | Blue |
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Number of levels | 1 |
| Stripping length | 12mm |
| Termination style | Push In, Spring |
| Positions | 2 |
