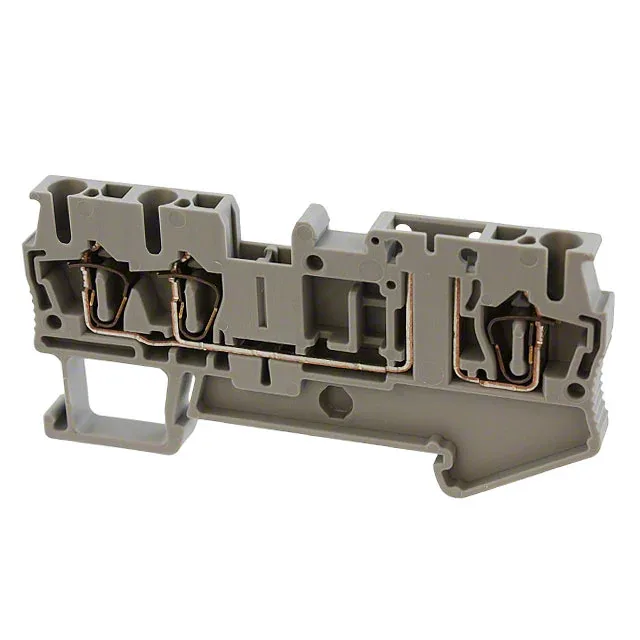

Phoenix Contact 3038448
MPN3038448
Active
CONN TERM BLK DISCONN 12-28AWG
$5.58Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCLIPLINE ST
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Disconnect |
| Series | CLIPLINE ST |
| Disconnect type | Open |
| Voltage - UL | 300V |
| Voltage - IEC | 400V |
| Current - UL | 16 A |
| Current - IEC | 20 A |
| Terminal - width | 5.2mm |
| Wire gauge or range - AWG | 12-28 AWG |
| Wire gauge or range - mm2 | 0.08-4mm² |
| Color | Gray |
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Number of levels | 1 |
| Stripping length | 10mm |
| Termination style | Push In, Spring |
| Positions | 3 |
