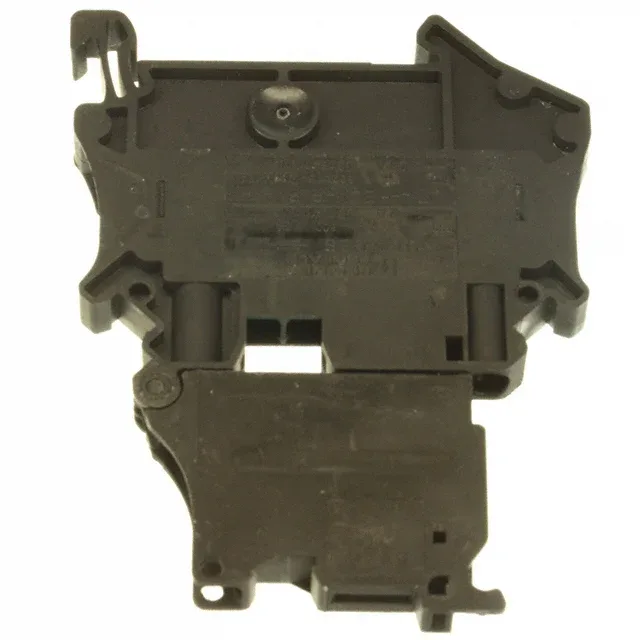

Phoenix Contact 3046032
MPN3046032
Active
CONN TERM BLK DISCONN 10-26AWG
$8.58Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCLIPLINE UT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Disconnect |
| Series | CLIPLINE UT |
| Fuse type | 5mm x 20mm |
| Disconnect type | Fuse, Lever |
| Voltage - UL | 600V |
| Voltage - IEC | 500V |
| Current - UL | 6.3 A |
| Current - IEC | 6.3 A |
| Terminal - width | 6.2mm |
| Wire gauge or range - AWG | 10-26 AWG |
| Wire gauge or range - mm2 | 0.14-6mm² |
| Color | Black |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Number of levels | 1 |
| Stripping length | 9mm |
| Termination style | Screw |
| Positions | 2 |
