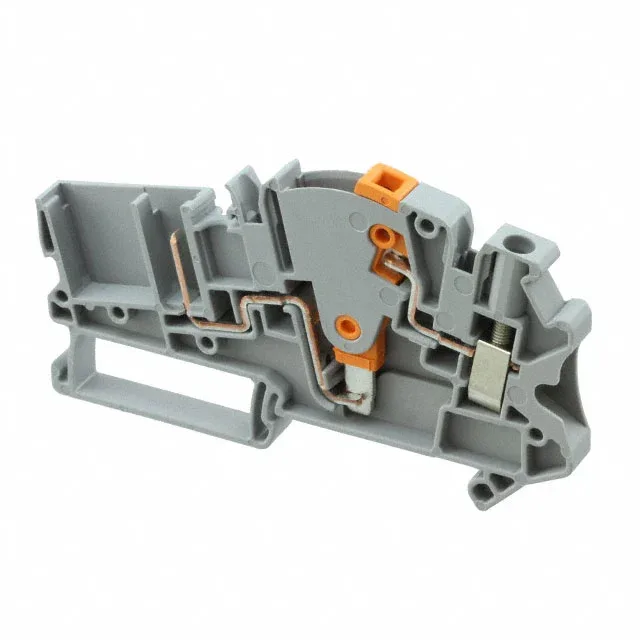

Phoenix Contact 3057432
MPN3057432
Active
TERM BLK PLUG 2POS 6.2MM GRAY
$7.9Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCLIPLINE UTME
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug Connection |
| Series | CLIPLINE UTME |
| Mounting | DIN Rail |
| Voltage - UL | 300 V |
| Voltage - IEC | 500 V |
| Current - UL | 25 A |
| Current - IEC | 28 A |
| Terminal - width | 6.2mm |
| Wire gauge or range - AWG | 10-26 AWG |
| Wire gauge or range - mm2 | 0.14-6mm² |
| Height | 2.244\" (57.00mm) |
| Housing color | Gray |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Length | 3.406\" (86.51mm) |
| Package | Bulk |
| Features | Disconnect Switch |
| Number of levels | 1 |
| Stripping length | 9mm |
| Termination style | Plug Receptacles, Screw |
| Positions | 2 |
