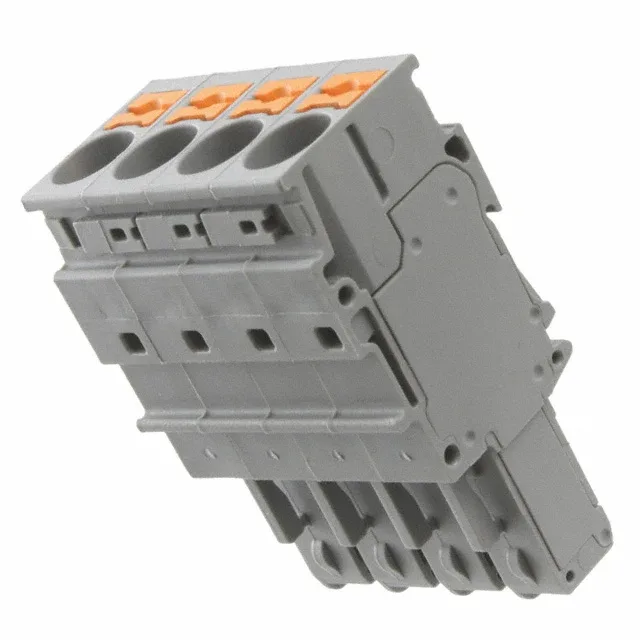

Phoenix Contact 3061596
MPN3061596
Active
TERM BLOCK PLUG 4POS STR
$16.94Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCLIPLINE COMBI PP-H
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | CLIPLINE COMBI PP-H |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 600 V |
| Voltage - IEC | 1 kV |
| Current - UL | 40 A |
| Current - IEC | 41A |
| Plug wire entry | 180° |
| Wire strip length | 12mm |
| Wire gauge or range - AWG | 8-20 AWG |
| Wire gauge or range - mm2 | 0.5-10mm² |
| Color | Gray |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 1.941\" (49.30mm) |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Interlocking (Side) |
| Number of levels | 1 |
| Termination style | Screwless - Push-In Spring |
| Positions | 4 |
| Positions per level | 4 |
