Phoenix Contact 3208582
MPN3208582
Active

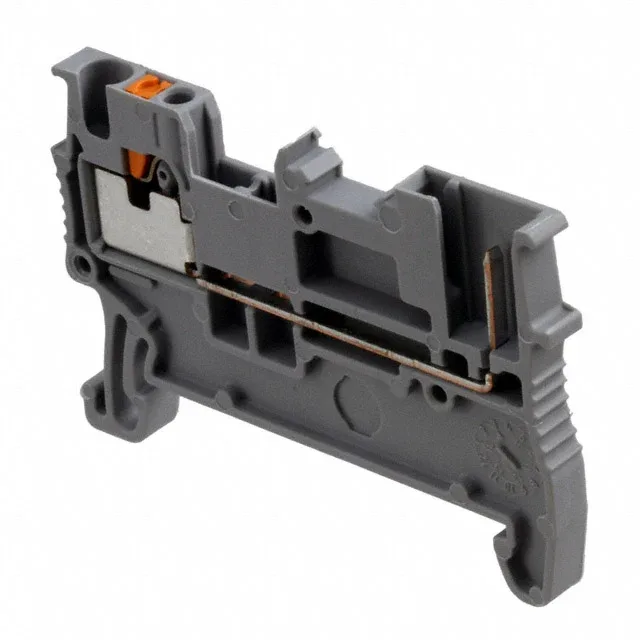

TERM BLK PLUG 2POS 3.5MM GRAY
$2.05Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCLIPLINE PT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug Connection |
| Series | CLIPLINE PT |
| Mounting | DIN Rail |
| Voltage - UL | 600 V |
| Voltage - IEC | 500 V |
| Current - UL | 5 A |
| Current - IEC | 17.5 A |
| Terminal - width | 3.5mm |
| Wire gauge or range - AWG | 14-26 AWG |
| Wire gauge or range - mm2 | 0.14-1.5mm² |
| Height | 1.555\" (39.50mm) |
| Housing color | Gray |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Length | 1.811\" (46.00mm) |
| Package | Bulk |
| Number of levels | 1 |
| Stripping length | 8mm |
| Termination style | Plug Receptacles, Push In, Spring |
| Positions | 2 |
