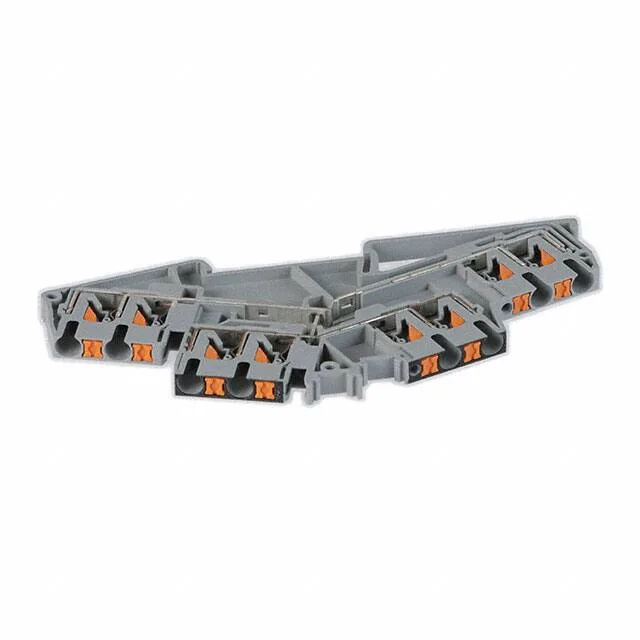

Phoenix Contact 3210612
MPN3210612
Active
CONN TERM BLK FEED THRU 12-26AWG
$11.51Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCLIPLINE PTTB
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Feed Through |
| Series | CLIPLINE PTTB |
| Voltage - UL | 600V |
| Voltage - IEC | 800V |
| Current - UL | 20 A |
| Current - IEC | 24 A |
| Terminal - width | 5.2mm |
| Wire gauge or range - AWG | 12-26 AWG |
| Wire gauge or range - mm2 | 0.14-4mm² |
| Color | Gray |
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Number of levels | 2; Connected |
| Stripping length | 10mm |
| Termination style | Push In, Spring |
| Positions | 8 |
