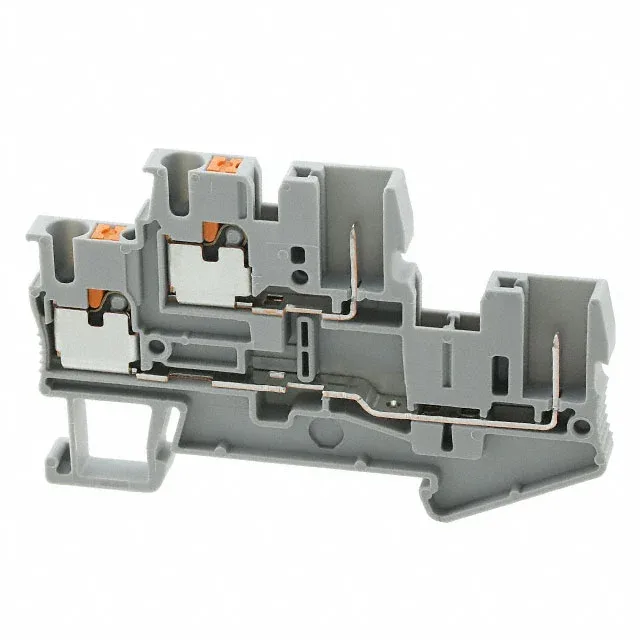

TERM BLK PLUG 4POS 5.2MM GRAY
$5.43Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | Plug Connection |
| Series | CLIPLINE PTTB |
| Mounting type | DIN Rail |
| Voltage - UL | 600 V |
| Voltage - IEC | 500 V |
| Current - UL | 20 A |
| Current - IEC | 22 A |
| Terminal - width | 5.2mm |
| Wire gauge or range - AWG | 12-24 AWG |
| Wire gauge or range - mm2 | 0.14-4mm² |
| Height | 2.165\" (55.00mm) |
| Housing color | Gray |
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Length | 2.815\" (71.50mm) |
| Package | Box |
| Number of levels | 2 |
| Stripping length | 10mm |
| Termination style | Plug Receptacles, Push In, Spring |
| Positions | 4 |
Sourcing this connector
Phoenix Contact 3210871 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Phoenix Contact and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
