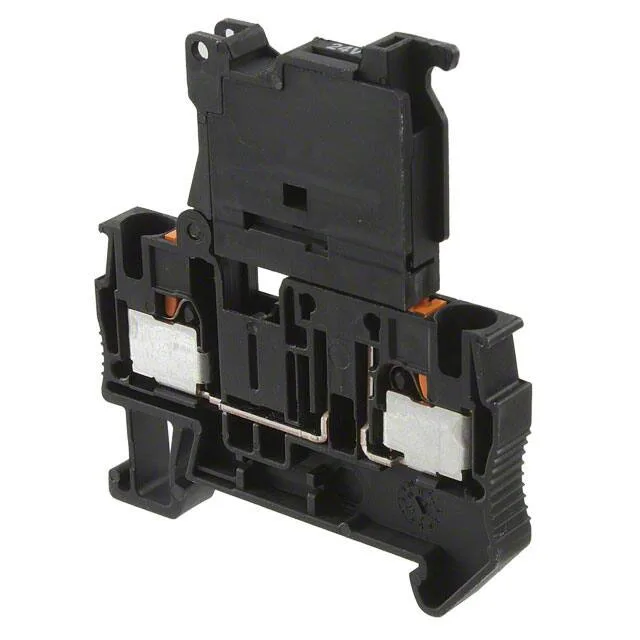

Phoenix Contact 3211903
MPN3211903
Active
CONN TERM BLK DISCONN 10-24AWG
$21.73Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCLIPLINE PT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Disconnect |
| Series | CLIPLINE PT |
| Fuse type | 5mm x 20mm |
| Disconnect type | Fuse, Lever |
| Voltage - UL | 30V |
| Voltage - IEC | 24V |
| Current - UL | 6.3 A |
| Current - IEC | 6.3 A |
| Terminal - width | 6.2mm |
| Wire gauge or range - AWG | 10-24 AWG |
| Wire gauge or range - mm2 | 0.2-6mm² |
| Color | Black |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Features | LED |
| Number of levels | 1 |
| Stripping length | 12mm |
| Termination style | Push In, Spring |
| Positions | 2 |
