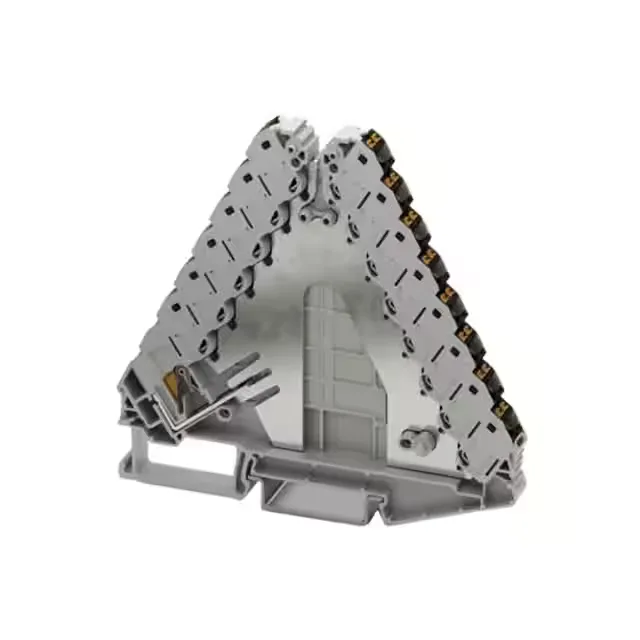

Phoenix Contact 3270160
MPN3270160
Active
TERM BLK MARSHALLING 29POS 8.3MM
$54.3Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCLIPLINE PT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Marshalling Connector |
| Series | CLIPLINE PT |
| Mounting | DIN Rail |
| Voltage - IEC | 250 V |
| Current - IEC | 32 A |
| Terminal - width | 8.3mm |
| Wire gauge or range - AWG | 14-26 AWG |
| Wire gauge or range - mm2 | 0.14-2.5mm² |
| Height | 3.740\" (95.00mm) |
| Housing color | Gray |
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Length | 3.937\" (100.00mm) |
| Package | Bulk |
| Number of levels | 8 |
| Stripping length | 12mm |
| Termination style | Push In, Spring |
| Positions | 29 |
